SPECIFICATIONS

Additional Function: Camera Function

Bit Depth: 8Bit

Brand Name: WGWK

Business function: Support WEB configuration, OSD, motion detection; Mobile detection alarm center reminder, screen pop-up linkage; Support MJPEG capture; Support client remote monitoring software, MYEYE platform and other system applications; Provide complete SDK development kit

Certification: CE

Day-night switching mode: Support IR-CUT, IR-CUT coil internal resistance of 20 Ohm, power duration less than 200ma, voltage 3.5V-6V

High Definition Support: 4K

Hign-concerned Chemical: None

Image Stabilization: No image stabilization

Image output: Main stream: 8MP 3840*2160@15fps; 5MP 2880*1616@25fps; 4MP 2560*1440@25fps; 3MP 2304*1296@25fps; 2MP 1920*1080@25fps; Substream: 800*448@25fps

Instructions: Support POE power supply, light board drive voltage at 3.3V

Intelligent analysis: Supports humanoid detection, face detection, and customization of other intelligent functions

Lens: Focal length and zoom lens, optional

Movies File Formats: H.264/H.265/H.265+

Network interface: 1 RJ45 Ethernet interface, 10/100M adaptive; Support network protocols such as RTSP/FTP/DHCP/NTP/UPnP combined with power interface

NightShot Function: No

Noise reduction: Support 2D/3D noise reduction

ONVIF protocol: support

Optical Zoom: 10x - 20x

Origin: Mainland China

Pixels: 8 million

Plate size: 38mm*38mm

Power source: Power supply DC12V/2A, power consumption ≤3W

Rreliability: Comprehensive lightning protection, in line with national and international standards; 7*24 hours -10℃~65℃ high temperature test stable and reliable

Sensor: 8MP black light CMOS sensor; Color 0.0001Lux@F1.2, black and white 0.0001Lux@F1.2 5MP 1/2.8" SC52395 low illumination CMOS sensor; Color 0.01Lux@F1.2, black and white 0.001Lux@F1.2

Sensor Size: 1/2.8 inches

Sensor Type: CMOS

Specification: 3/4/5/8MP

Touch Screen: No

Type: Professional

Use: Professional

Video processing: H265AI/H.265+ compatible with H.265/H.264 encoding, dual stream, AVI format; The stream is adjustable from 0.1M to 10Mpbs: the frame rate is adjustable from 1-30 frames per second

Weight: 301g-400g

【Best-selling products】IP Network Camera, click the image for direct access to the purchase channel ▶

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.

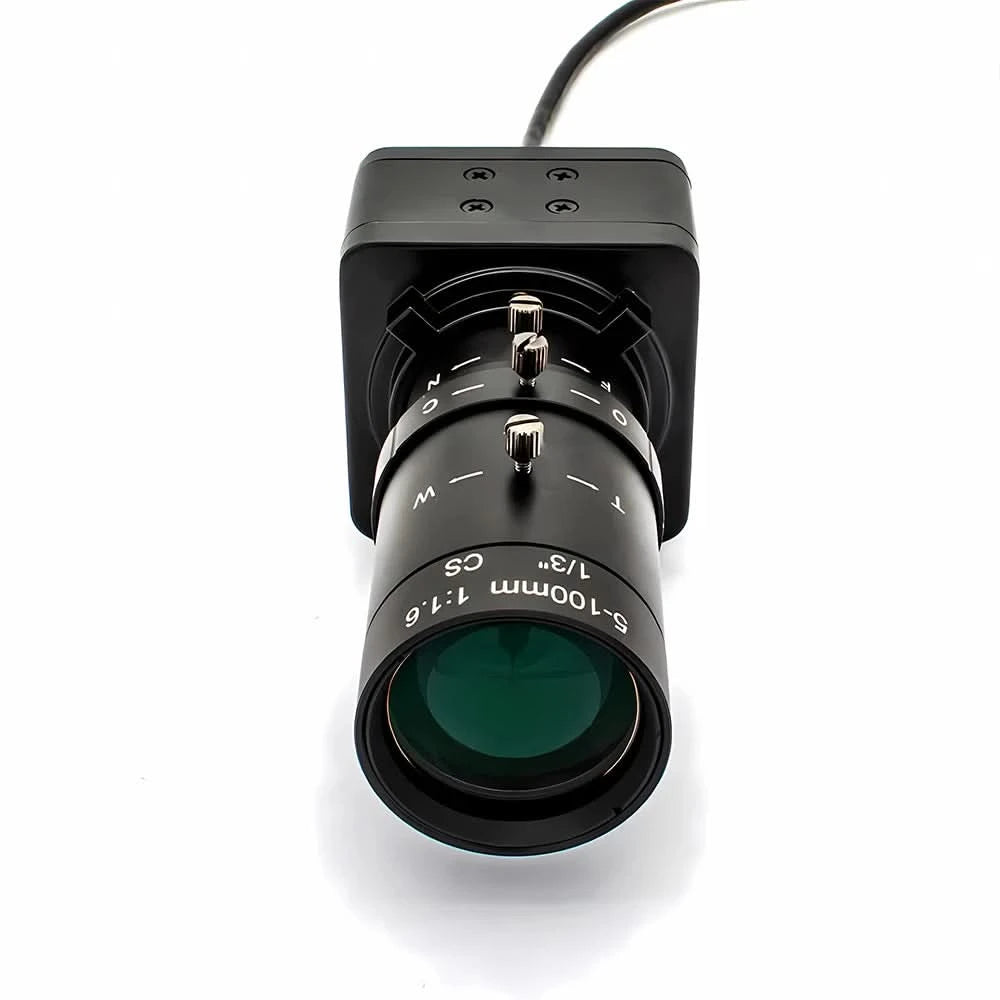

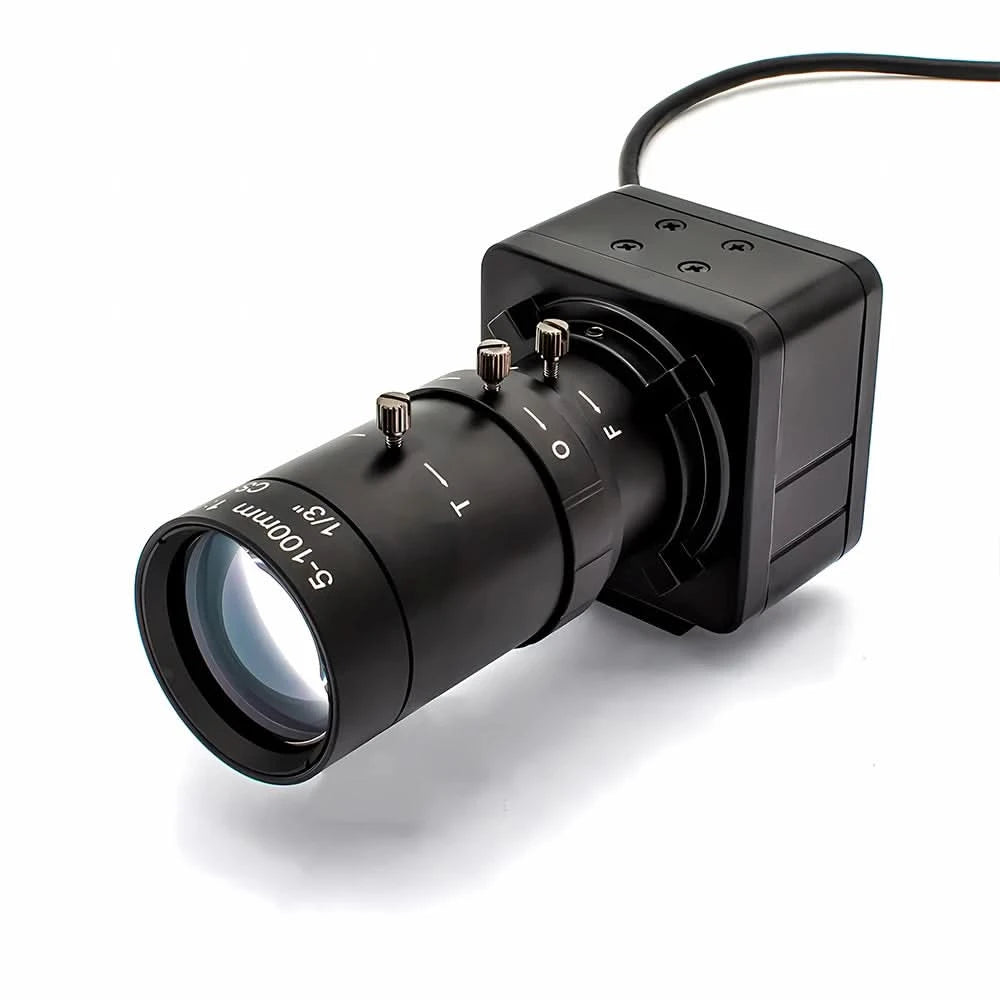

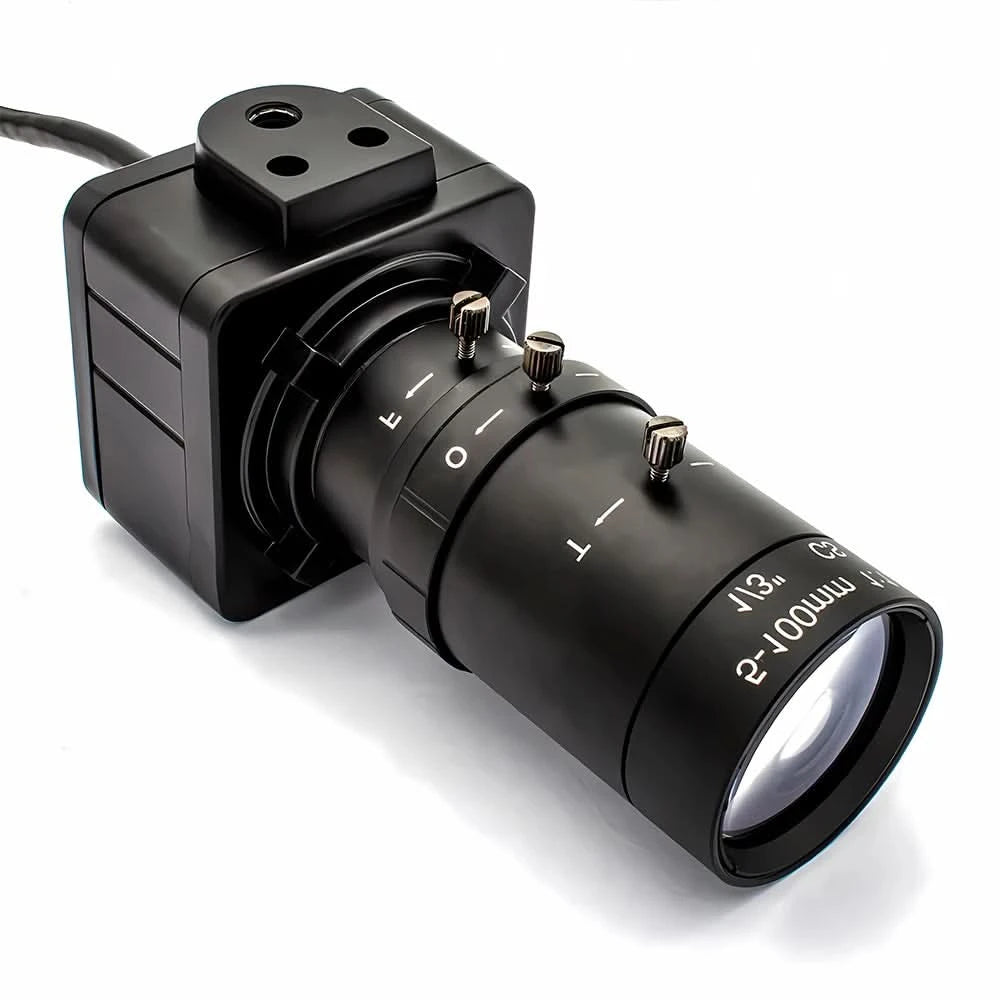

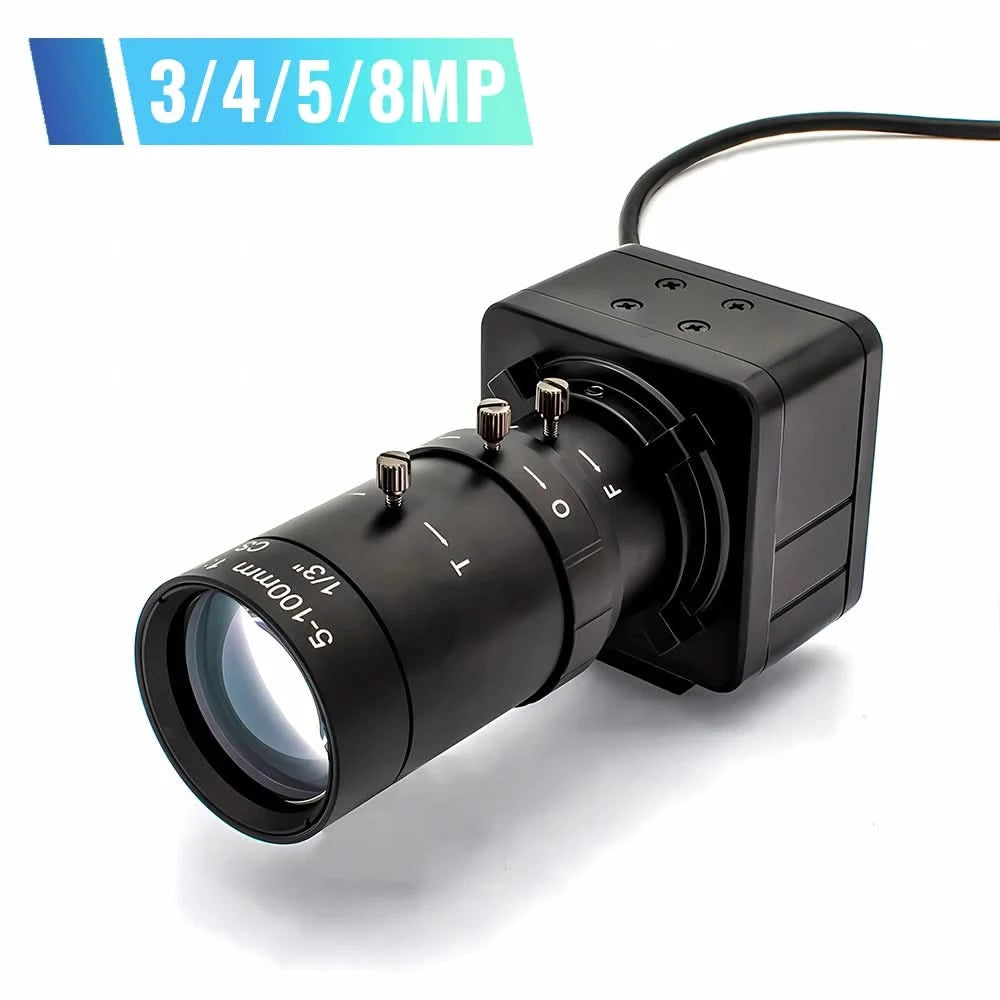

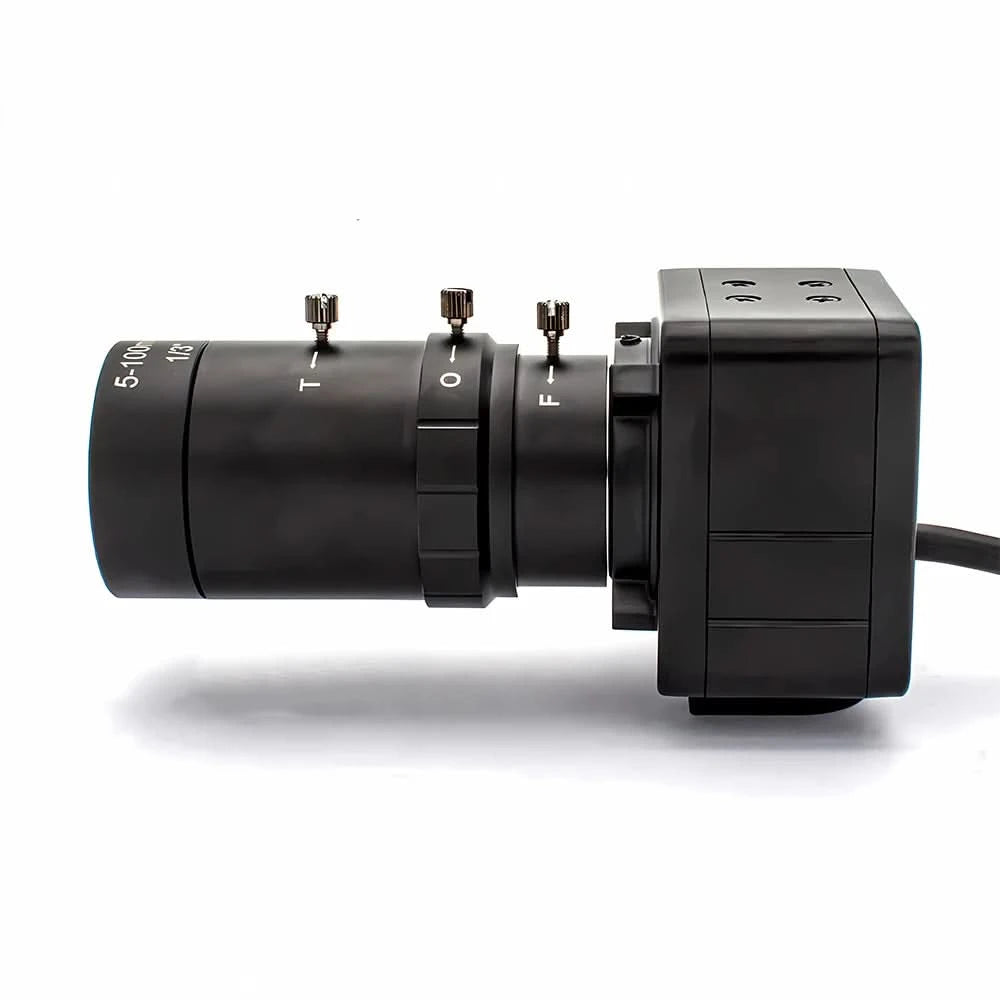

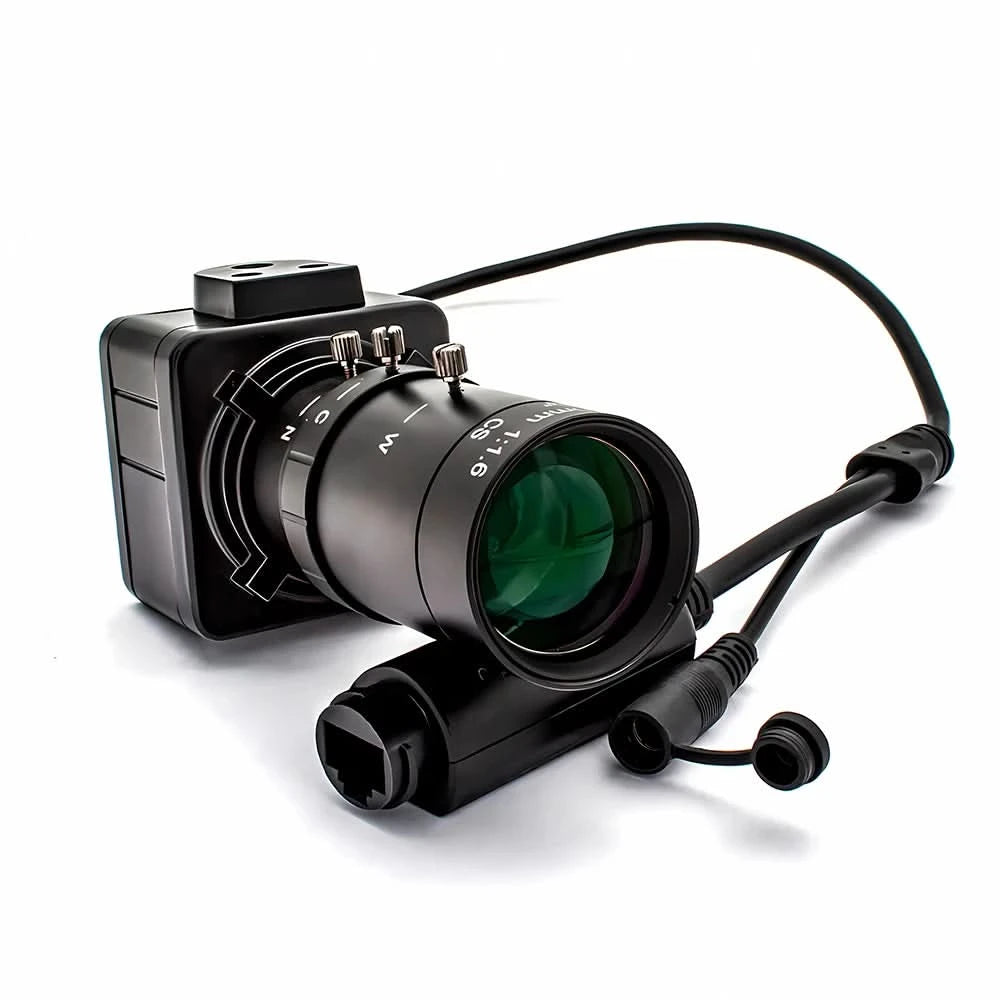

WGWK 4K Mini Type IP Camera 5-100mm Varifocal Lens Onvif P2P CCTV System Video For POE NVR System Indoor Home Surveillance cam

NOTE:

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)
2.Due to manual measurement, please allow an error of 2-3mm
Experience our webcam, featuring high frame rates, excellent low-light performance, and optional lenses to ensure clear and detailed images. Its ultra-compact design is perfect for various embedded applications, elevating your visual experience to the next level!

1.High quality 3/4/5/8MP HD IP Camera

2.5-100mm M12  Lens

3.High frame rate MJPG– deliver 25fps in 2560x1440 resolution, 25fps in 1920X1080 resolution.

4.CMOS Sensor for high quality image and low power consumption.

5.Super small outline and thin profile for embedded applications.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

About RTSP

Address stream:

Enter the network URL in Please enter network URL:

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57  This is the IP of the connected device

:554 This is the port number of the RTSP service, which can be changed in the device's network service

user=admin This is the login user name for the device

password= Password blank

channel=1 First channel

stream=0.sdp？Main code stream

stream=1.sdp？Auxiliary code stream

rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?

10.6.3.57 is the device IP address

:554 is RTSP port，can reset in device network service

user=admin is device user’s name

password= no pass word

channel=1 refer to Channel No.1

stream=0.sdp？ mainstream

stream=1.sdp？ substream

About computer operation and use

Make sure the camera is connected to the power supply and network

(the signal light flashes to prove that everything is normal)

Step 1 : Install VMS

VMS Computer Client: Contact customer service to obtain the VMS installation package

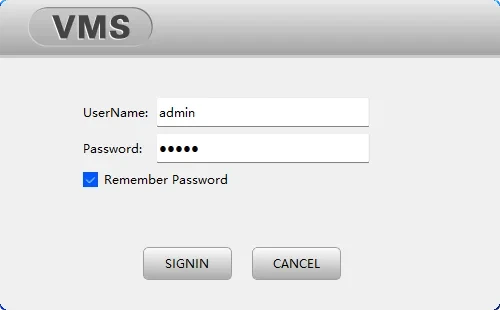

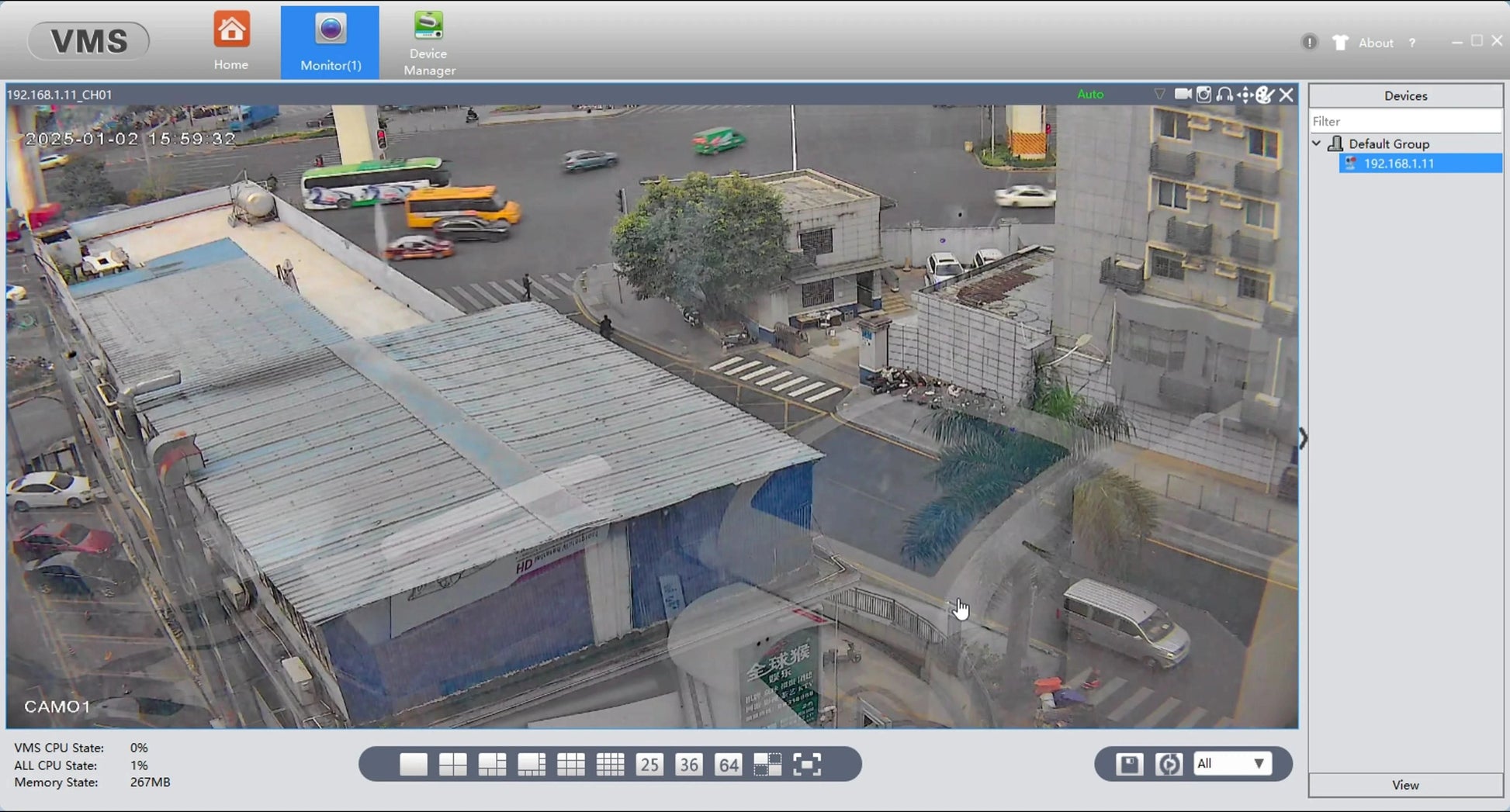

Step 2: Login VMS

UserName: admin,Password:admin

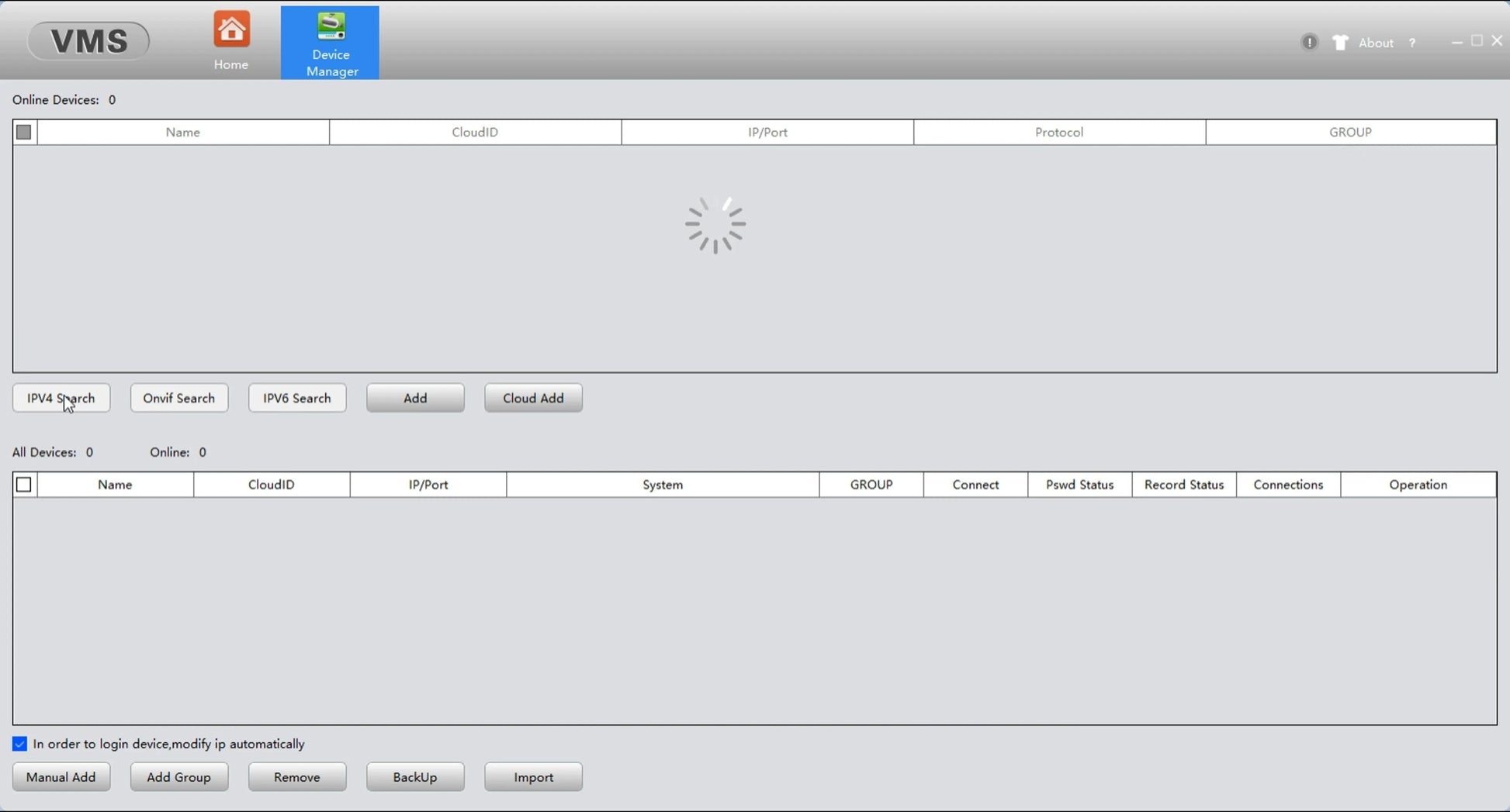

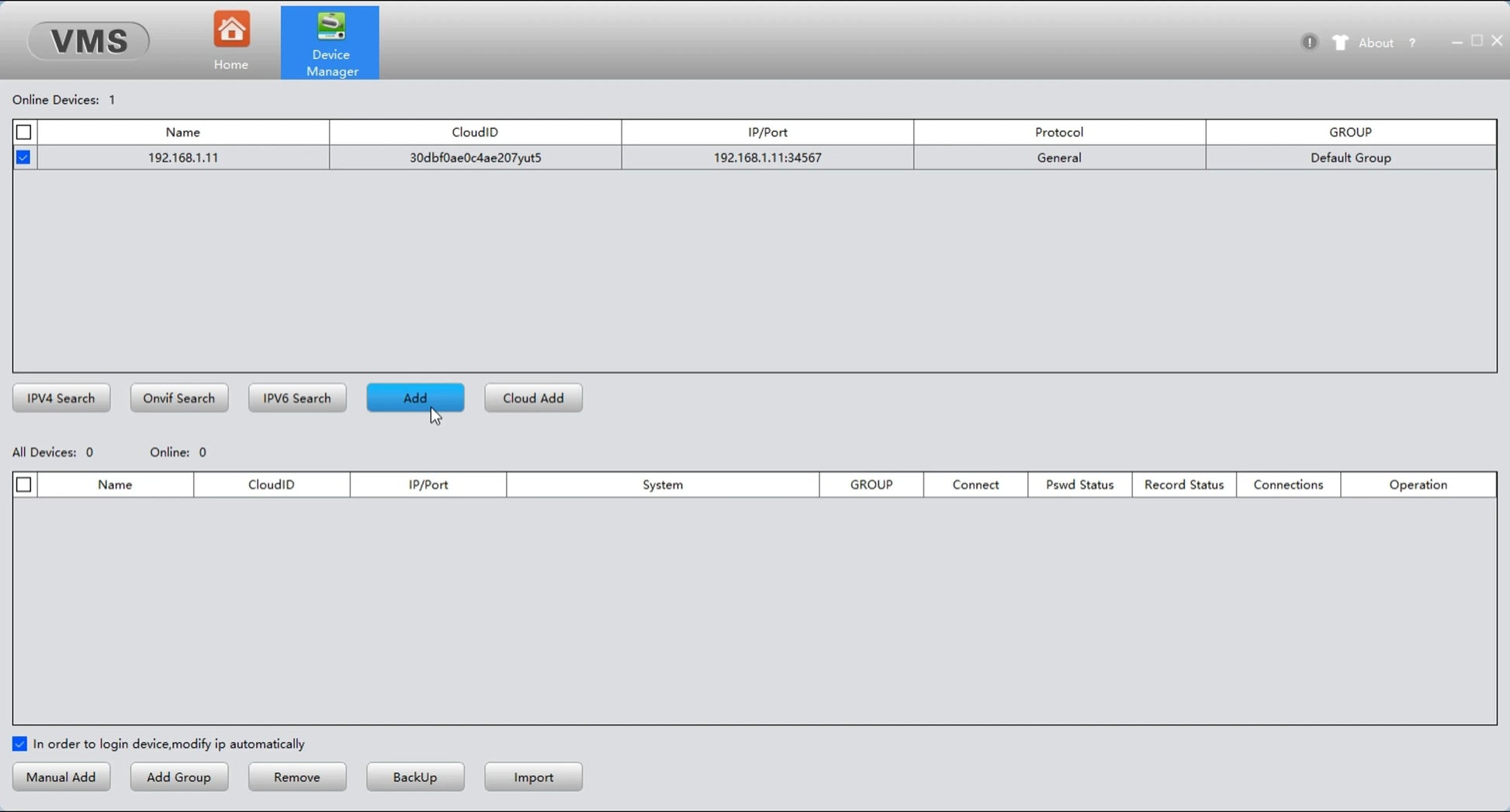

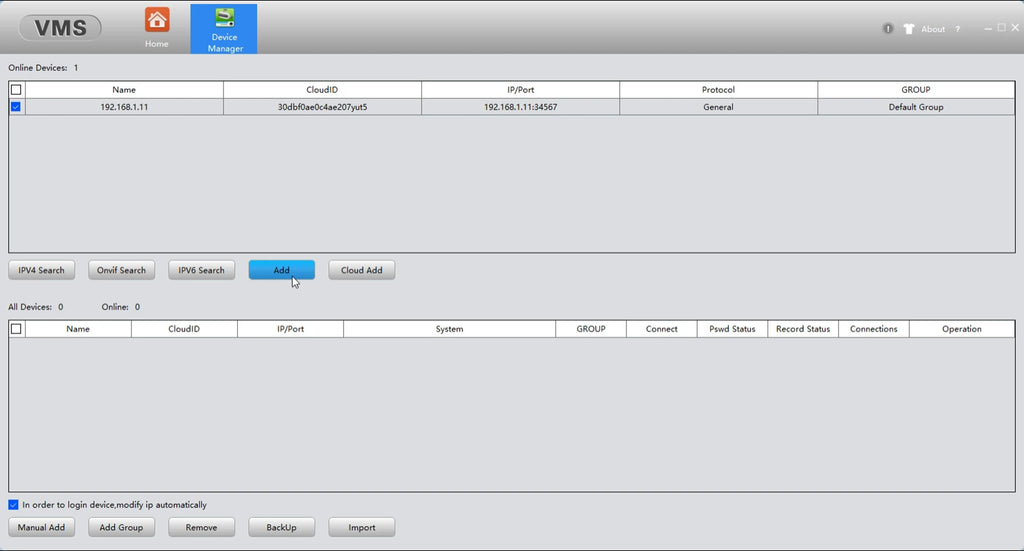

Step 3: Find your camera and add

APP download: Search XMEye in Apple Store
