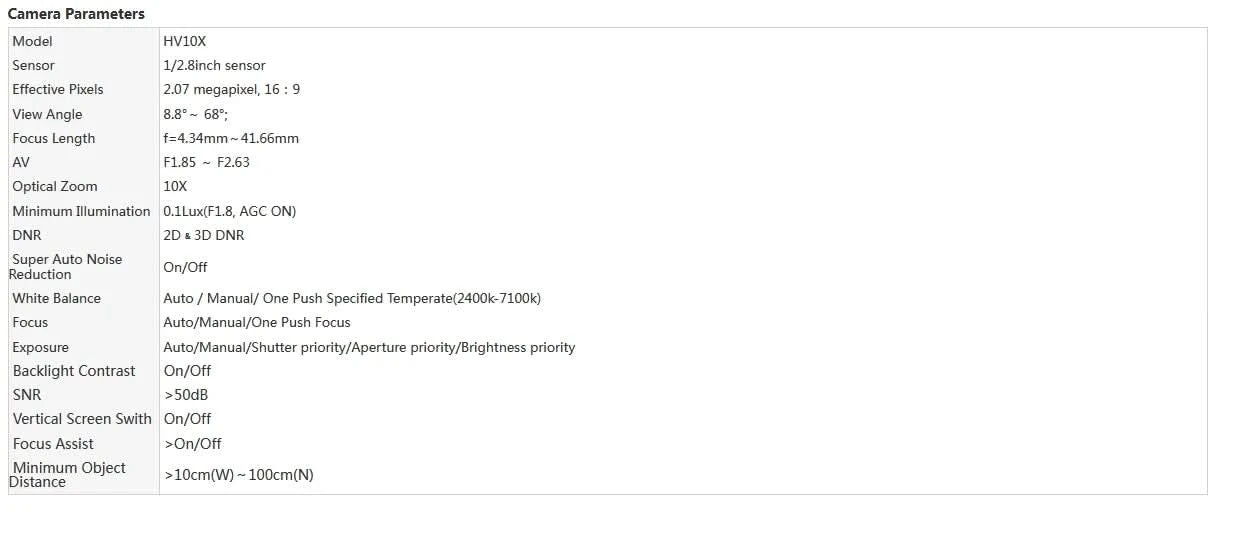

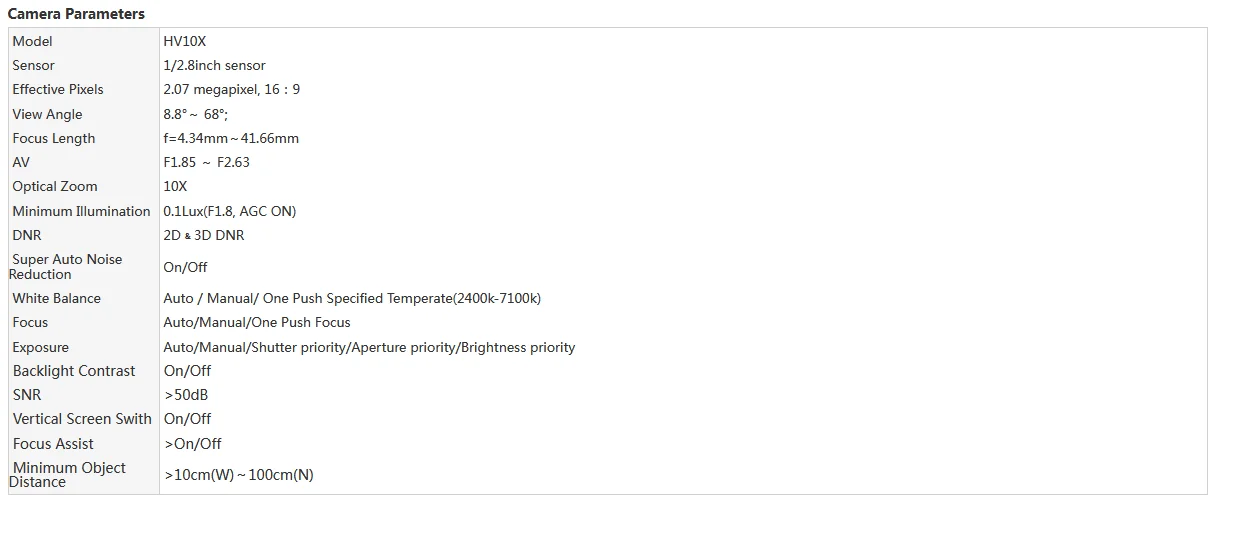

SPECIFICATIONS

AV: F1.85 ~ F2.63

Additional Function: Camera Function

Audio Input: Built-in 2 MIC

Brand Name: FEELWORLD,Feelworld

Certification: CE,FCC,RoHS

Control Interface: USB

DNR: 2D&3D DNR

Dimension (W*H*D): 78mm*137.5mm*78mm

Effective Pixels: 2.07 megapixel, 16:9

Focus Length: f=4.34mm~41.66mm

High Definition Support: 1080P (Full-HD)

Hign-concerned Chemical: None

Image Stabilization: Optical image stabilizer

Imaging Sensor: CMOS

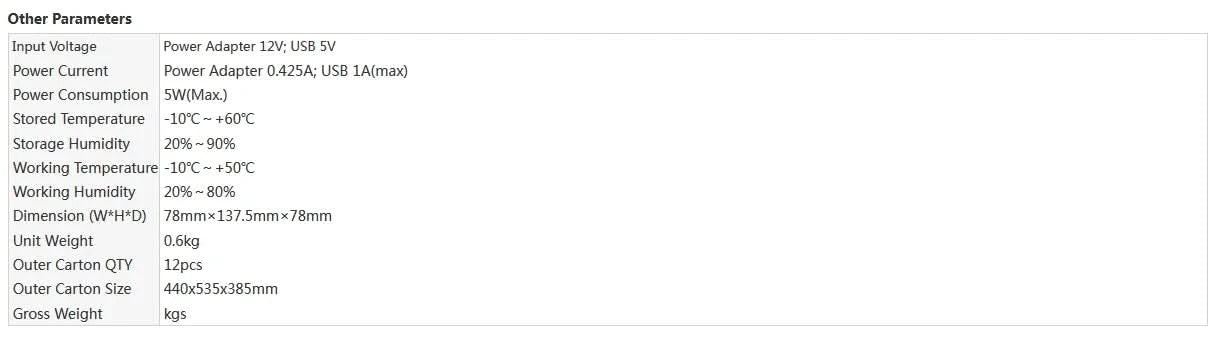

Input Voltage: Power Adapter 12V; USB 5V

Minimum Object Distance: >10cm(W)~100cm(N)

Model Number: HV10X

Movies File Formats: 720p (60/59.94/50) 1080p (60/59.94/50/30/29.97/25)

Optical Zoom: 10x - 20x,10X

Origin: Mainland China

Pixels: 2.07 million

Place of Origin: Fujian, China

Power Current: Power Adapter 0.425A; USB 1A(max)

Private Mold: NO

SNR: >50dB

Sensor: 1/2.8inch sensor

Sensor Size: 1/2.8

Sensor Type: CMOS

Touch Screen: No

Type: HD Camera

Use: Professional

Video Compression Format: H.264, MJPEG, YUV, NV12

View Angle: 8.8°~ 68°

Weight: 601g-700g

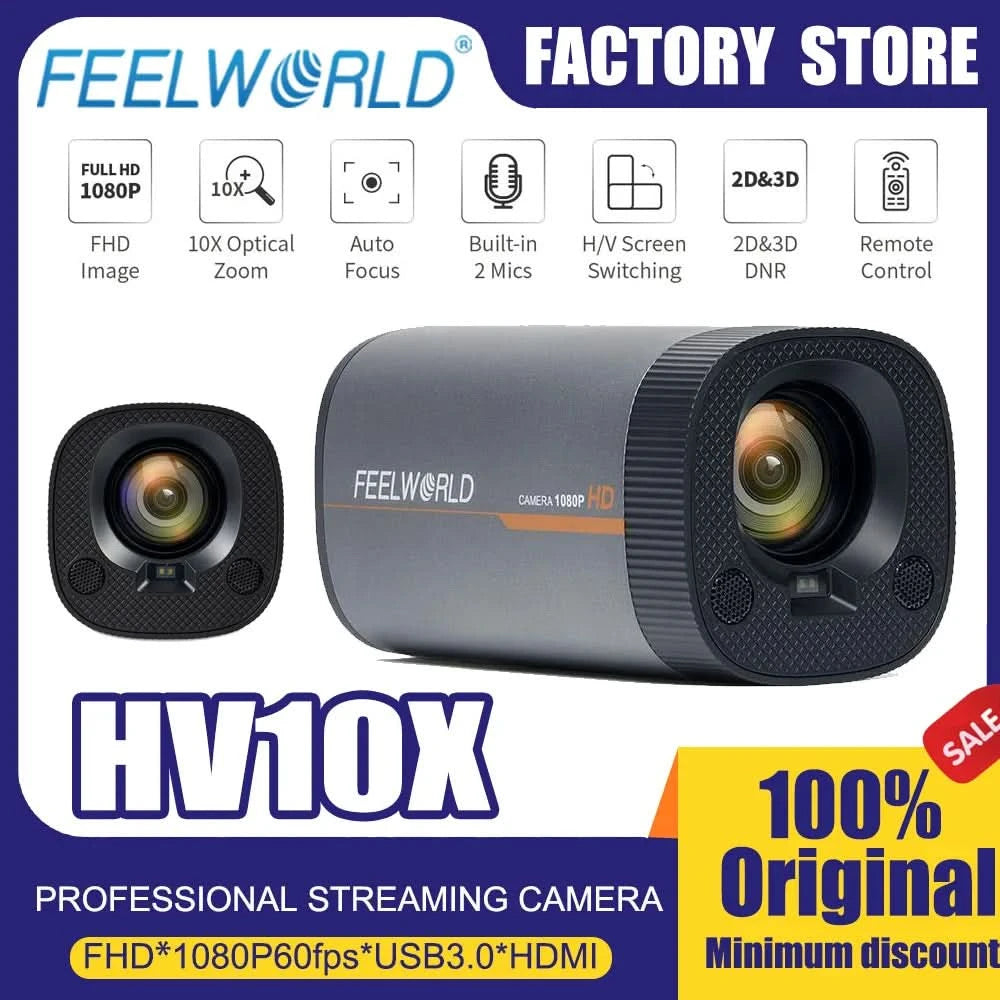

Product Information



1080P@60fps,Provides a Crisp and Ultra-smooth Video Experience

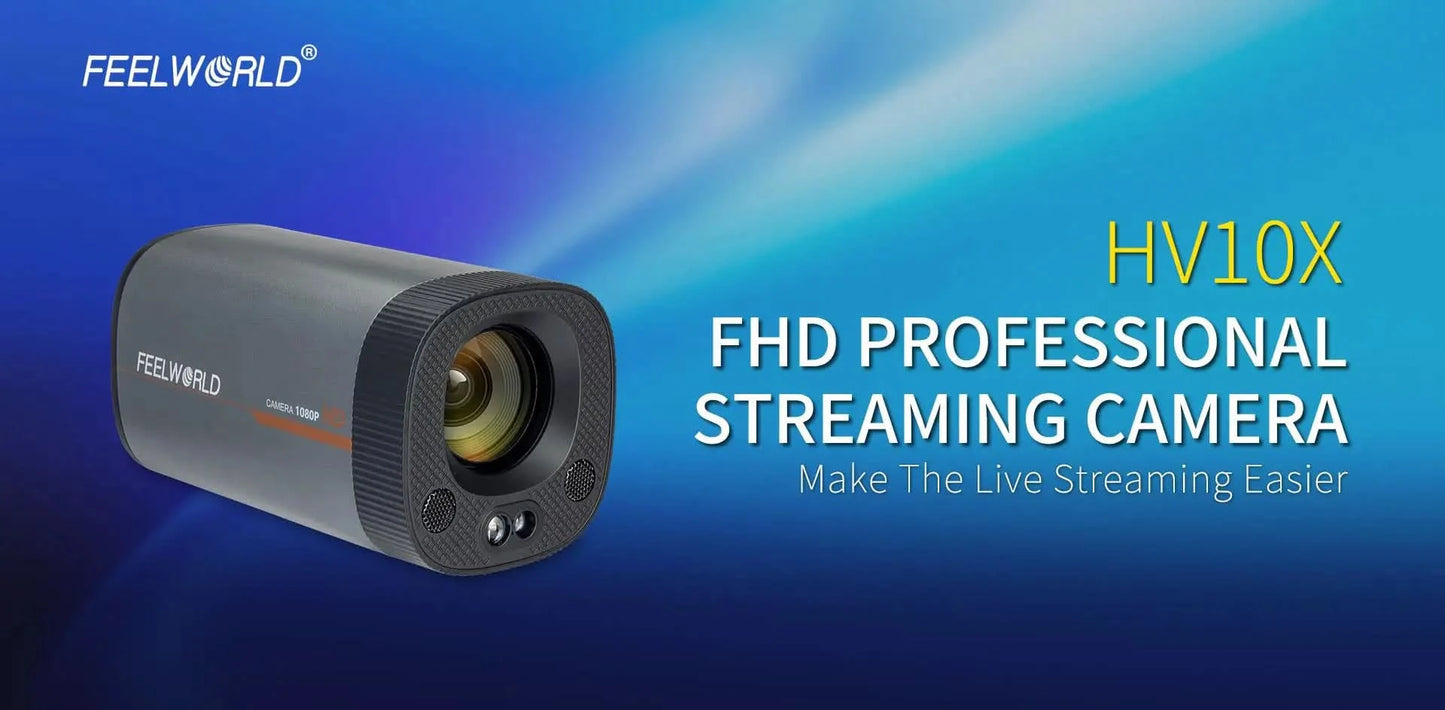

FEELWORLD HV10X is the Full HD camera which design for live streaming and video creator. Adopts 1/2.8 inch high quality CMOS sensor, resolution is up to 1920x1080 with frame rate up to 60fps, presents clear and realistic high-definition video, vividly showing the expressions and movements of the characters. Suitable for various live broadcast scenarios application.

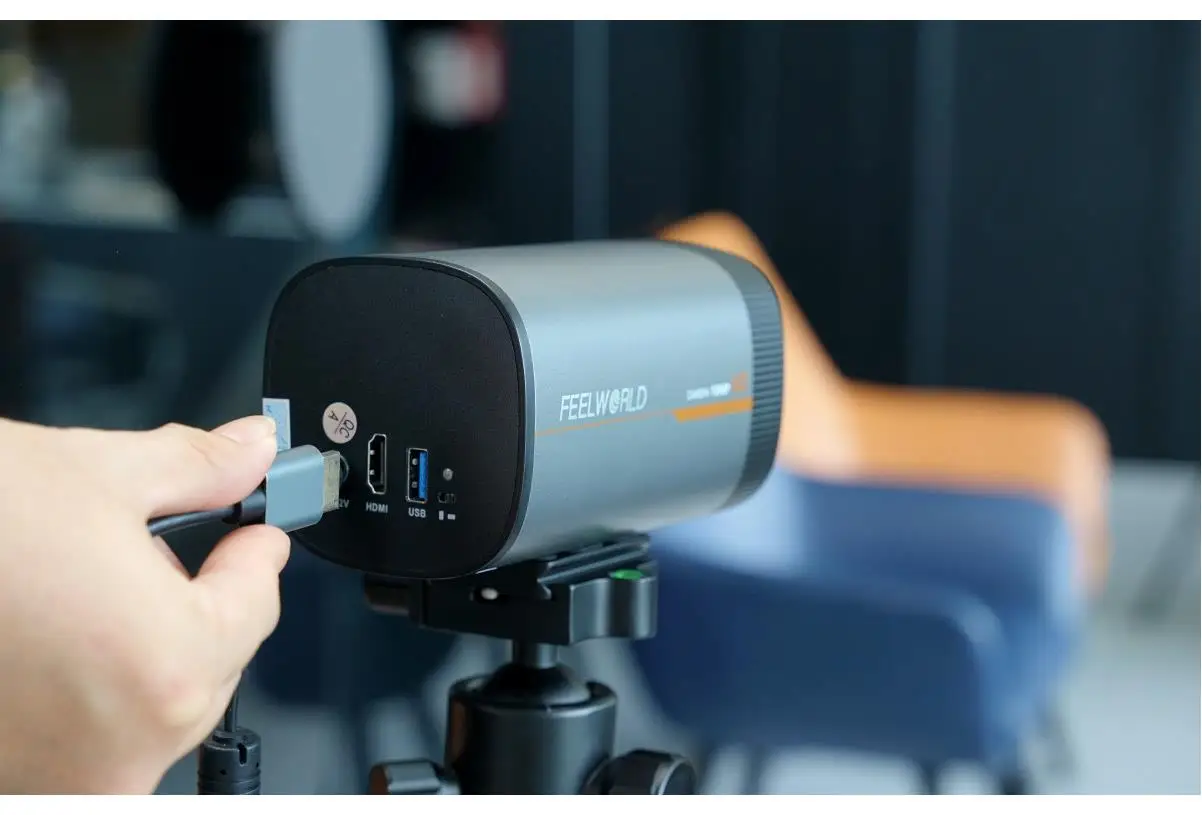

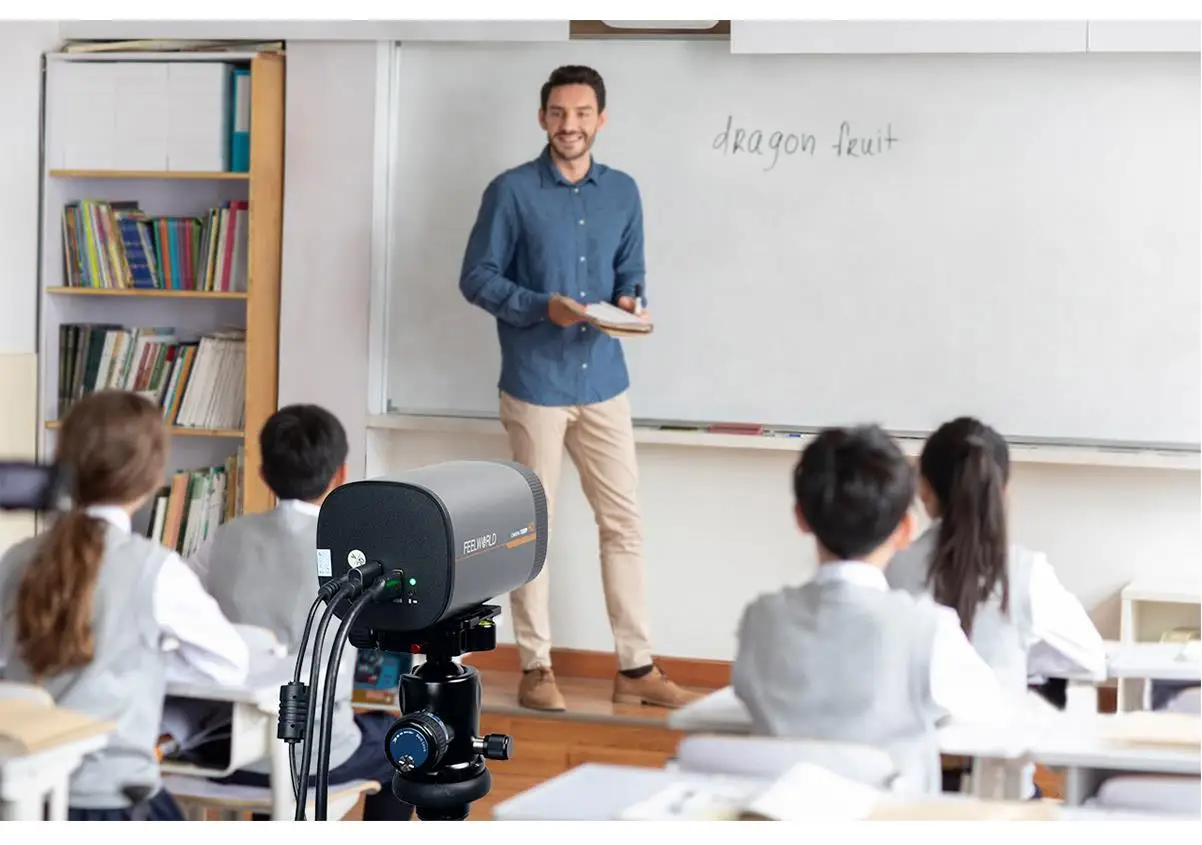

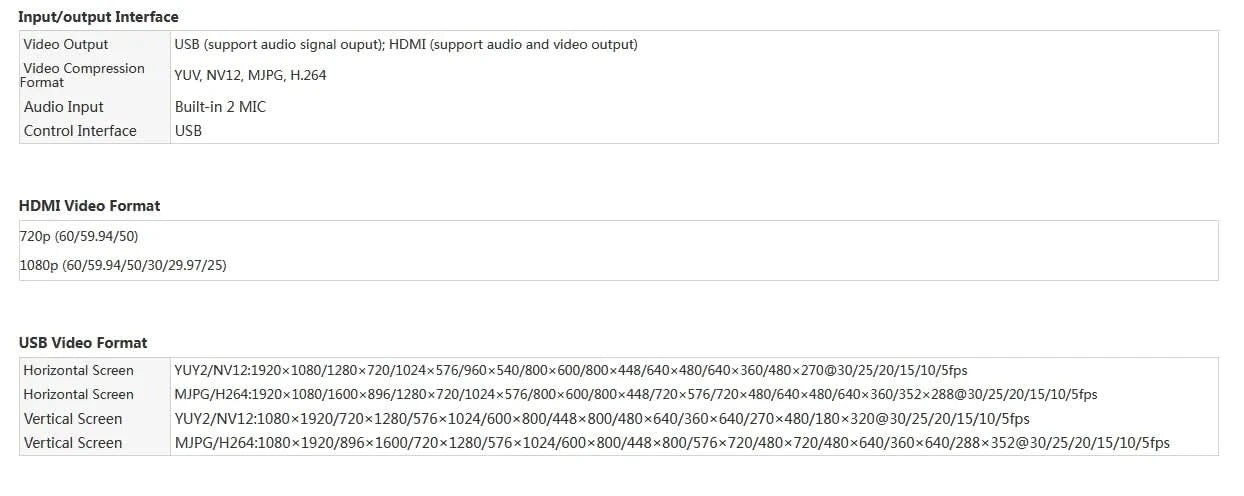

USB3.0 & HDMI Video Output



Support USB3.0 (compatible with USB2.0) and HDMI video and audio output, can be easily applied to education training or stream to your favorite platform, such as YouTube, Instagram, Facebook, etc.

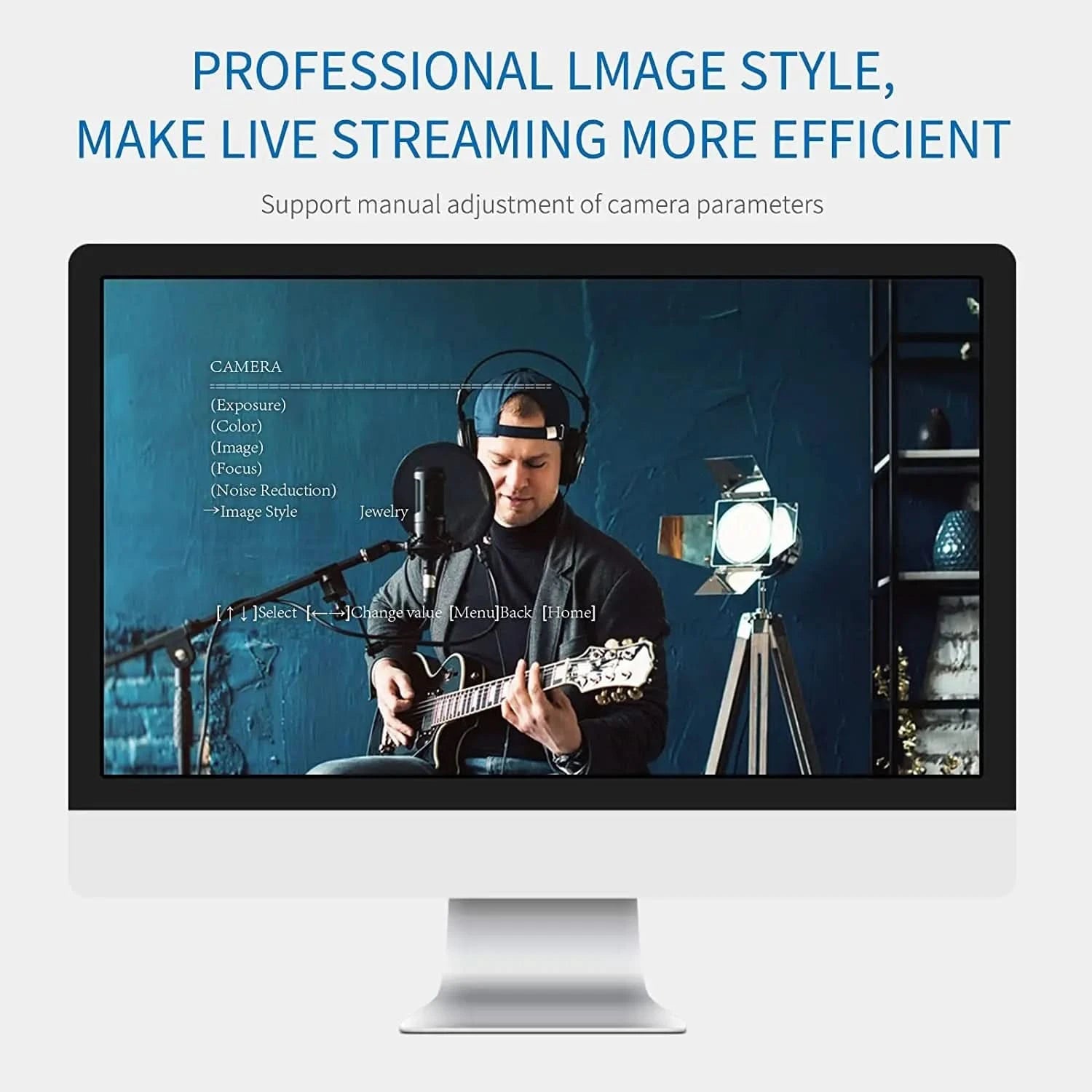

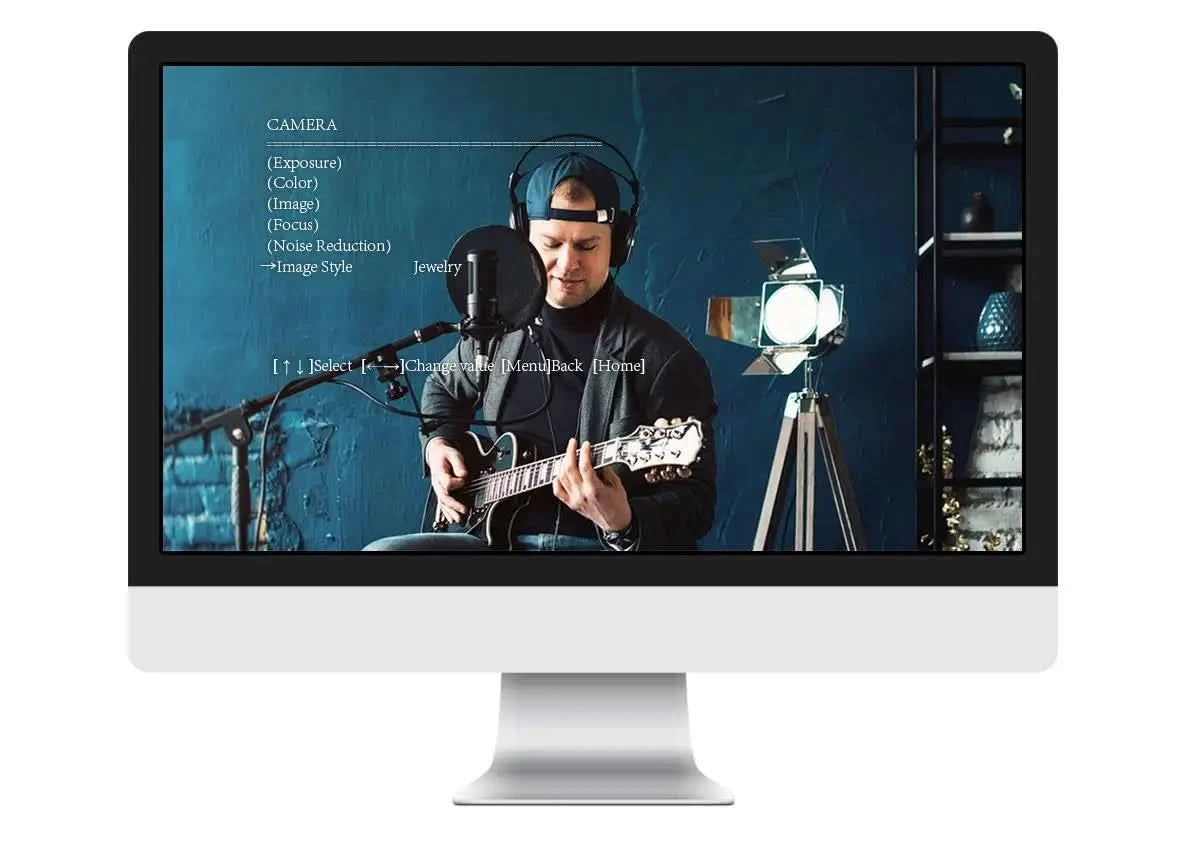

Professional Image Style, Make Live Streaming More Efficient





Default to support beauty and jewelry style modes, presenting the best live broadcast effect.

Note: For the first time use, please adjust the camera settings according to your own needs to get the best image, the parameters that can be adjusted on different platforms may be different.

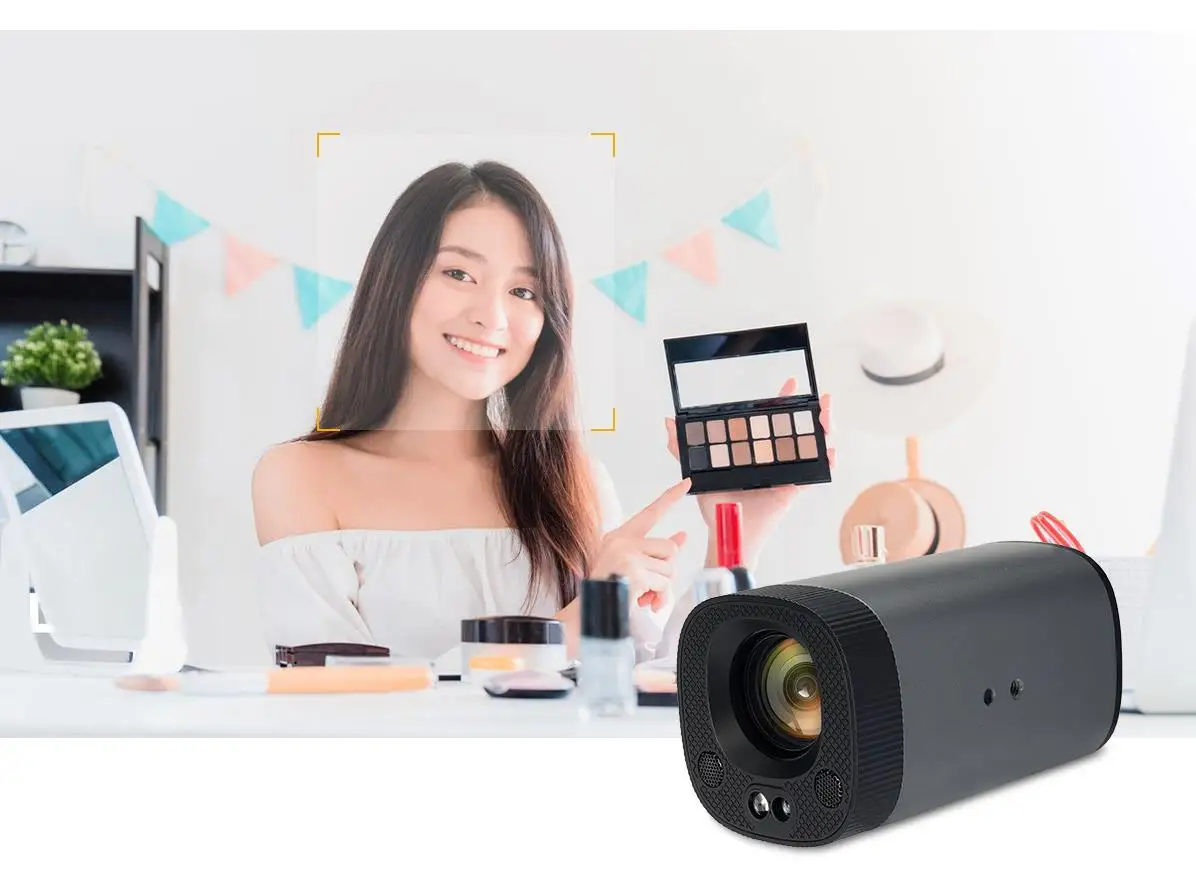

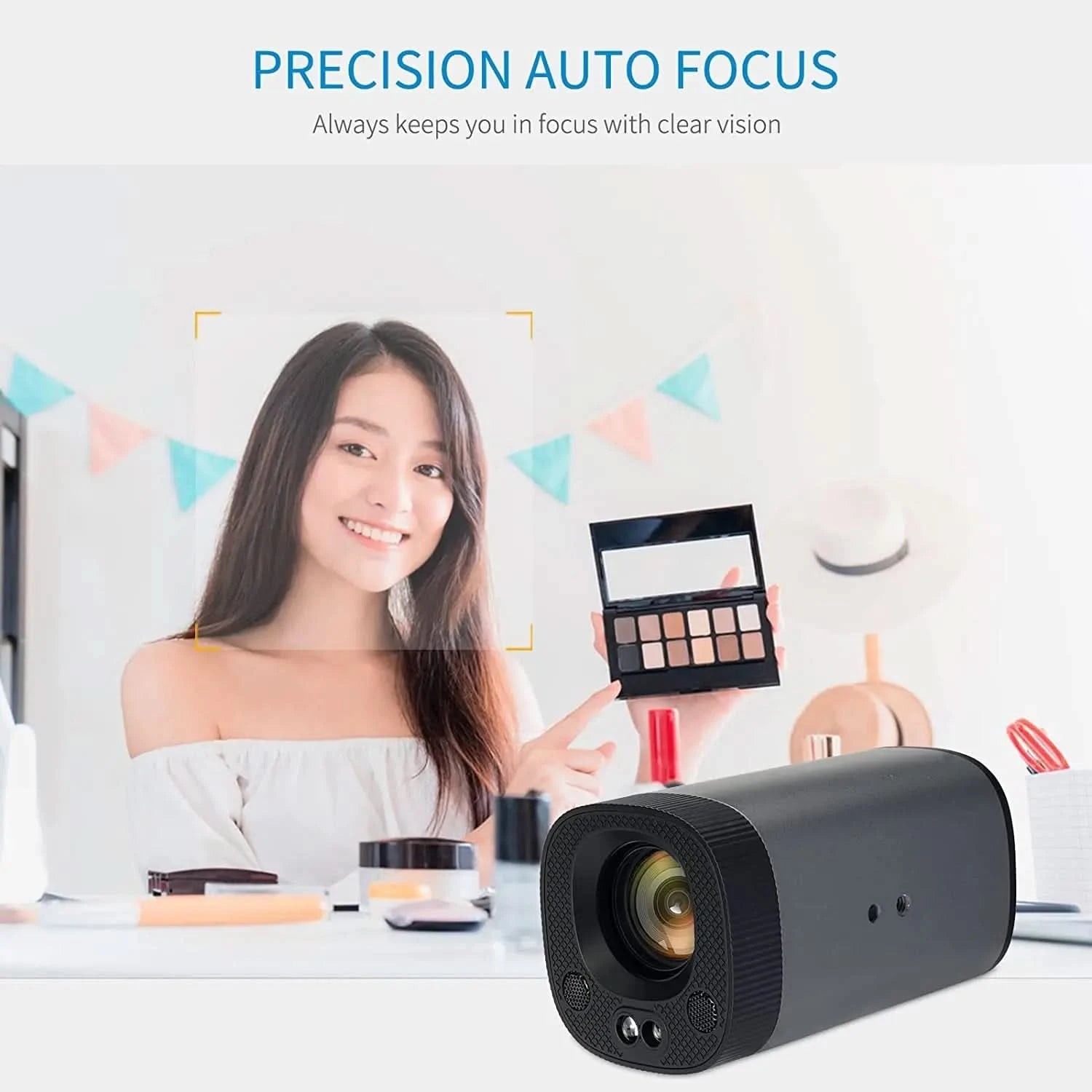

Auto Focus, Smart Frame Capture Everyone





Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking.

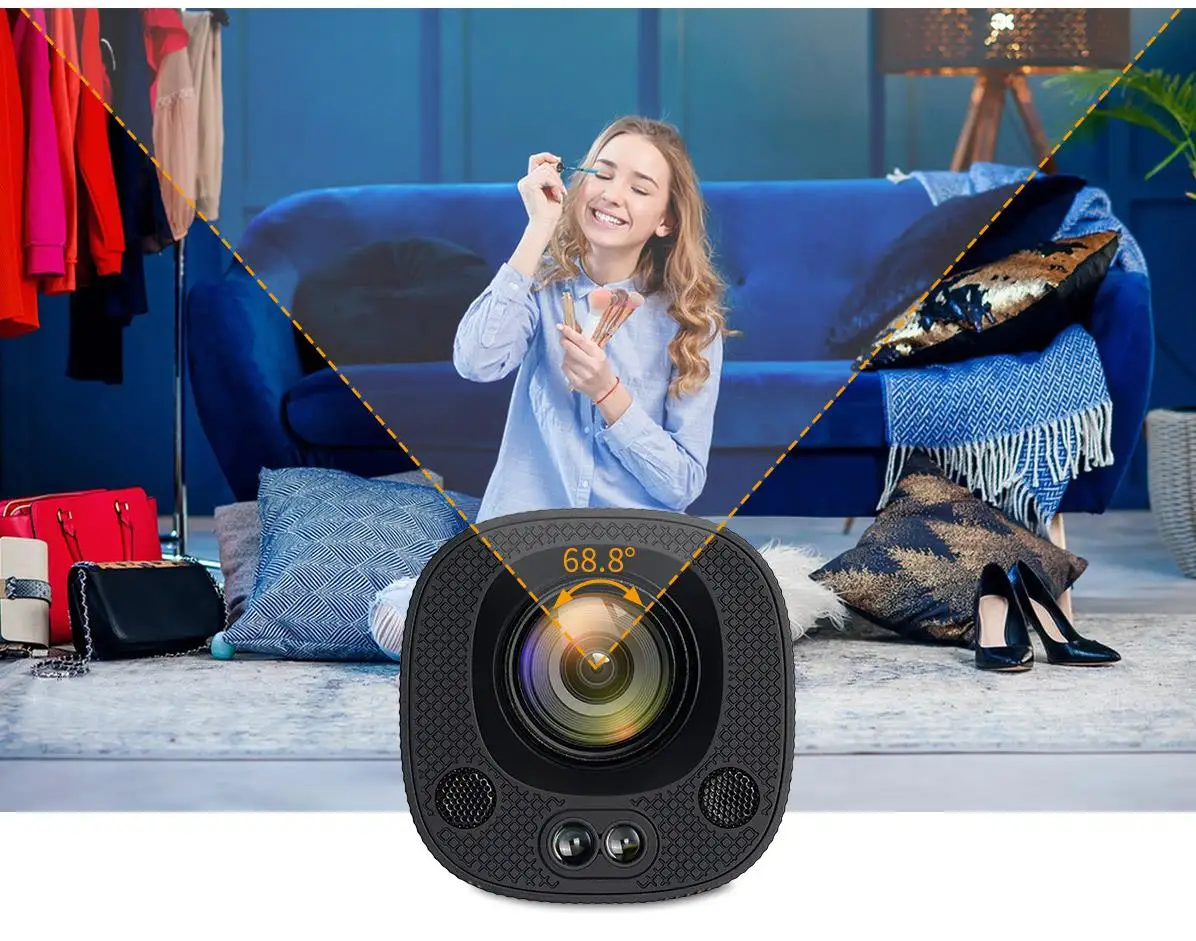

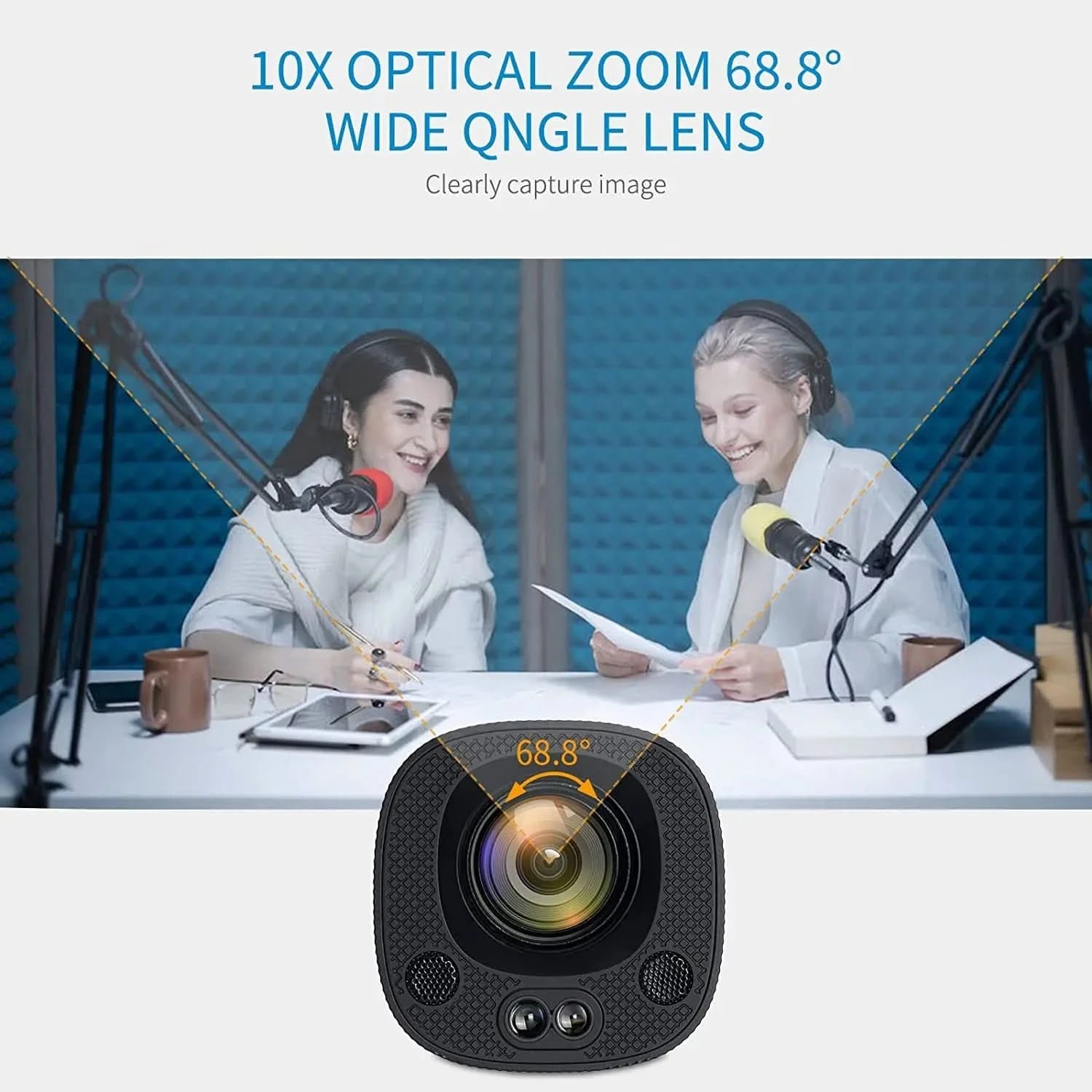

10X Optical Zoom





The camera adopts 10X optical zoom and 68.8° wide angle lens, clearly capture image.

Low Noise, High SNR





Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

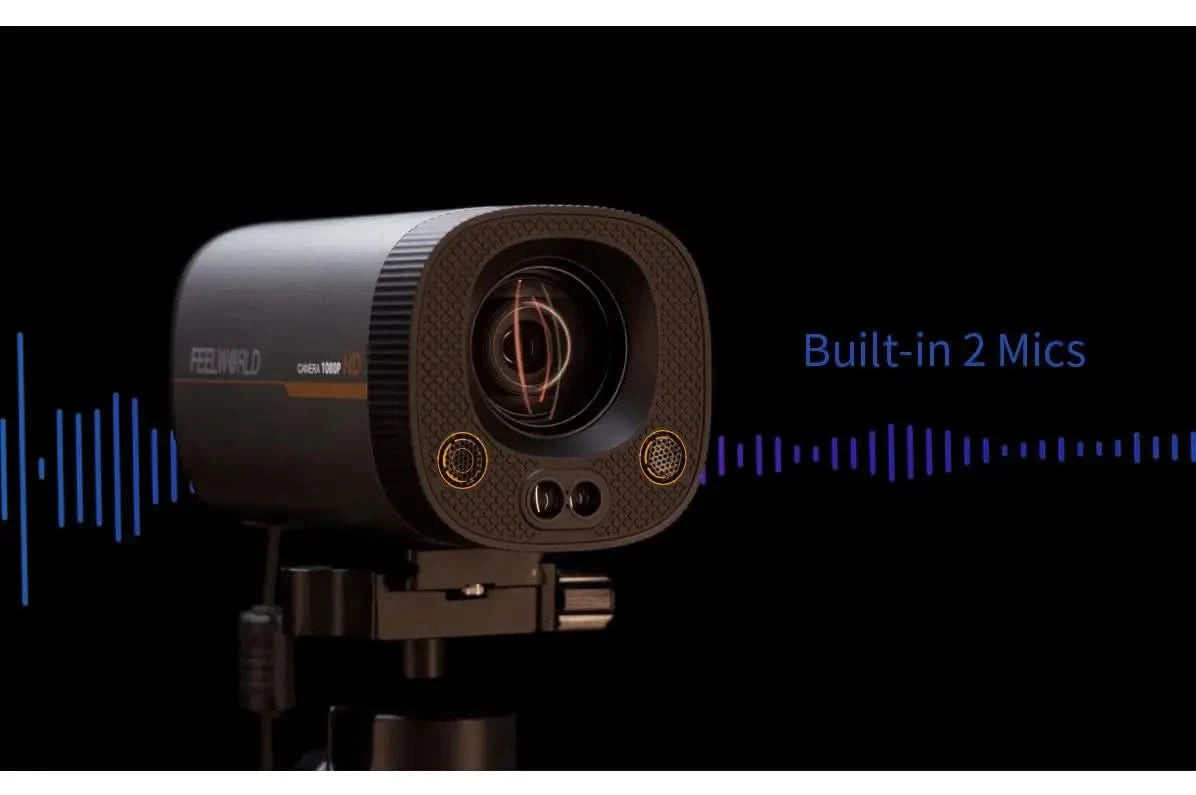

Built-in 2 Mics, Makes Your Voice Perfectly Presenting







The camera built-in 2 mics, capturing natural stereo audio, the unique noise suppression algorithm makes your voice perfectly presented.

Remark: 1. Pick up the sound 6 meters in the omnidirectional direction (the best pickup distance is 3 meters).

2. The microphone is off by default, you need to turn it on in the menu and restart the camera

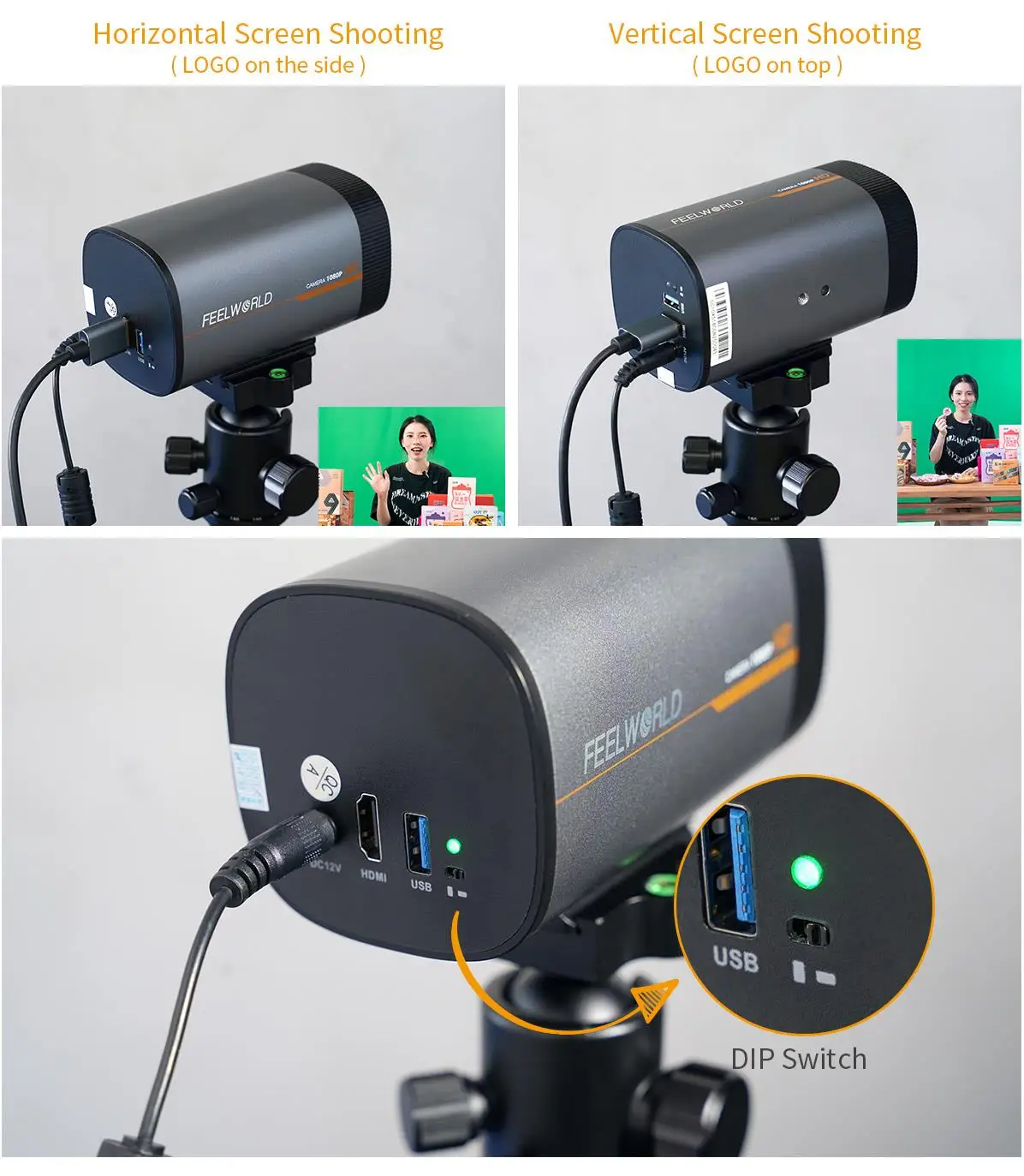

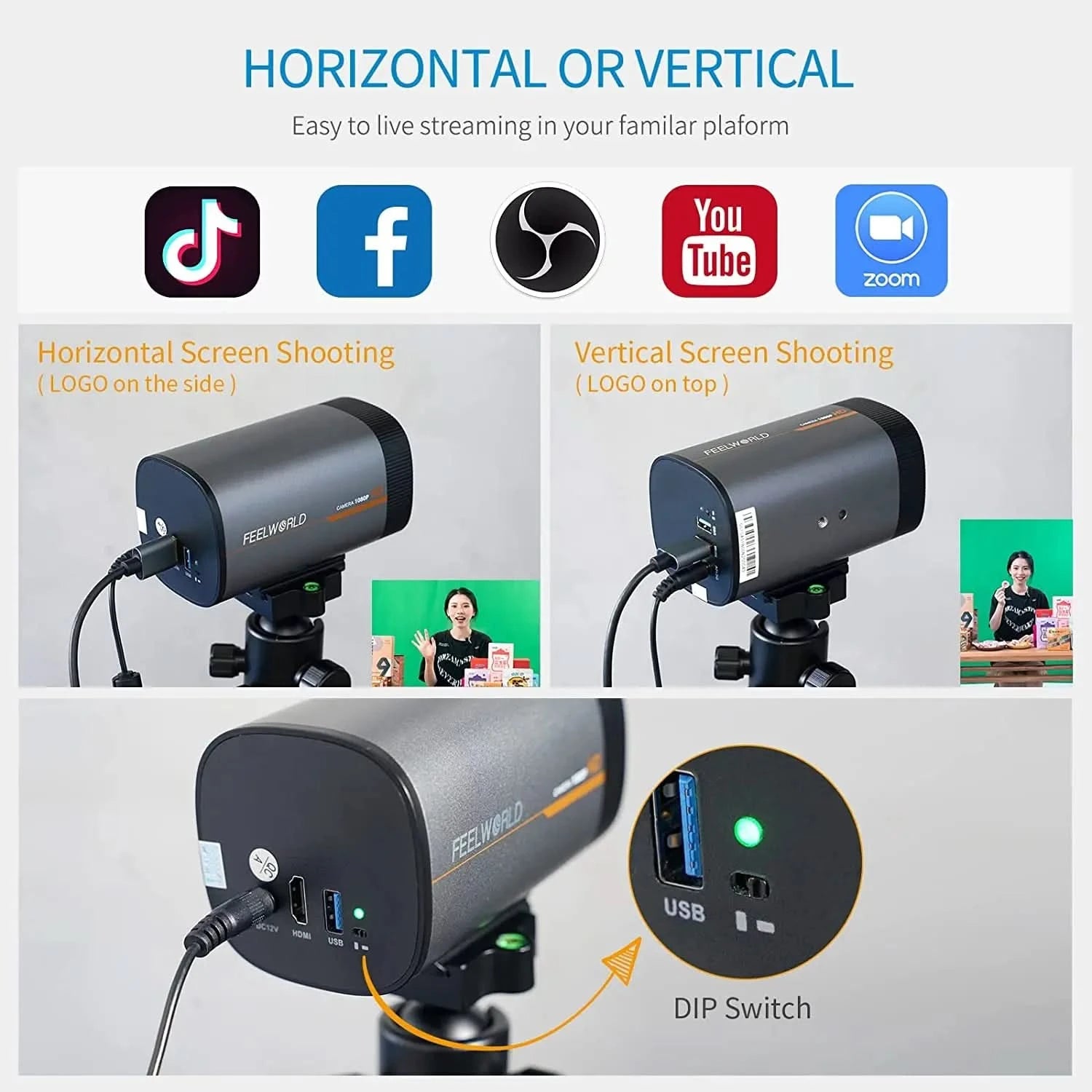

Horizontal or Vertical Screen, Easy to Switch







Switching the horizontal screen and vertical screen output mode via DIP Switch of the camera (need to be set well before the device power on). Easily handle no matter horizontal or vertical screen live streaming.

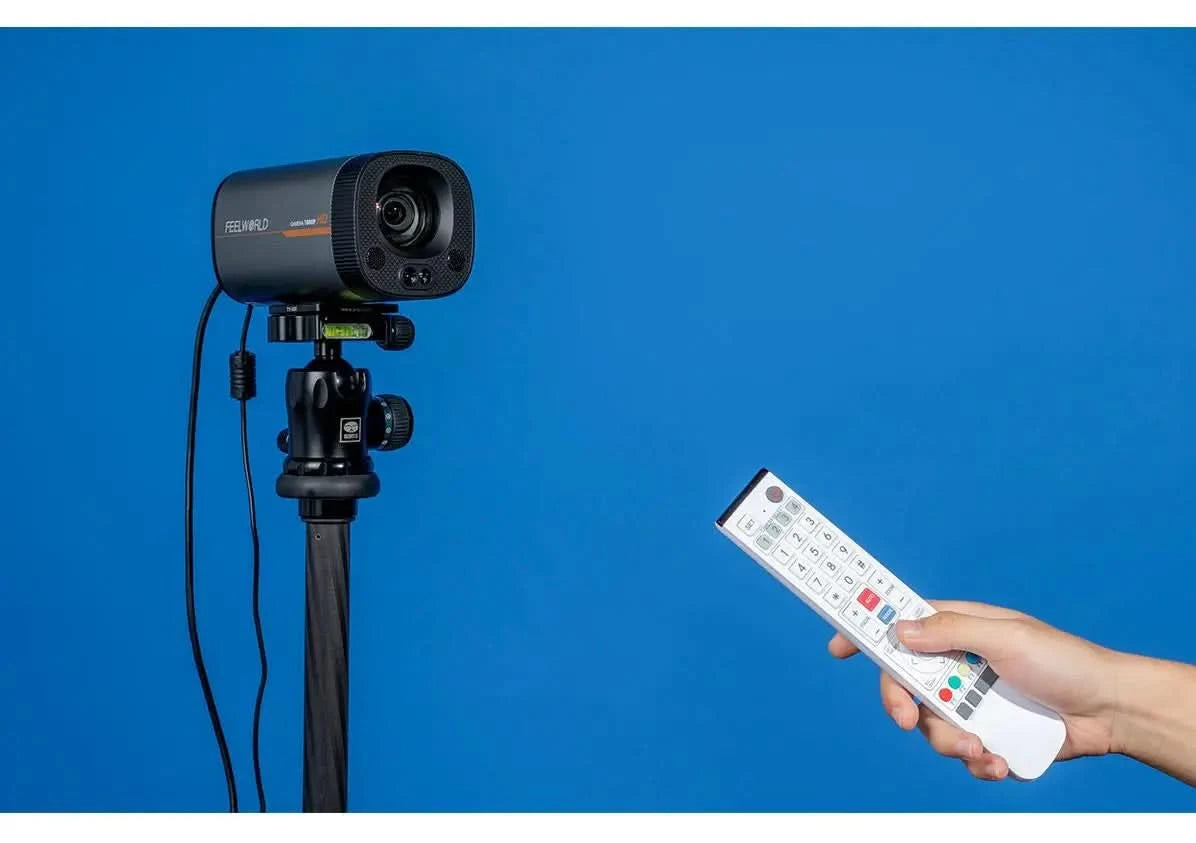

IR Remote Controller, Operate Nearby or Far Away







You can zoom in or out, focus adjustment , menu control and other operation via IR remote controller.

Main Features



*1/2.8 inch High quality sensor,resolution is up to 1920x1080 with frame rate up to 60fps.
* 10X optical zoom lens and 68.8° wide angle lens
* HDM, USB3.0; Simultaneously output audio and video signal
* Fast, accurate and stable auto focusing technology
* Support to switch the horizontal screen and vertical screen output mode via DIP Switch, to better meet customers' demands
* Support the beauty and jewelry style mode, and adjust the best image effect for live scenes.
* Multiple video encoding YUV,NV12,MJPG,H.264, making video playback smoother
* Built-in 2 mics, the unique noise suppression algorithm makes your voice perfectly presented.
* Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
* No need to download drivers, USB output is plug and play, with a convenient and concise user experience.

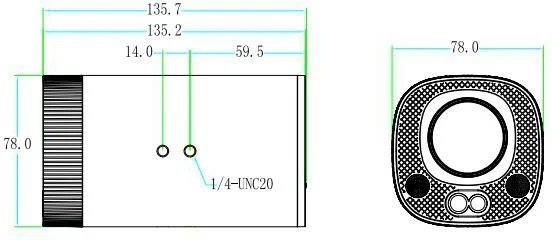

Structure Dimensions (Unit: mm)

Pack List:

1× Streaming Camera 1× Power Adapter 1× USB3.0 Cable 1× Remote Control 1× Manual
