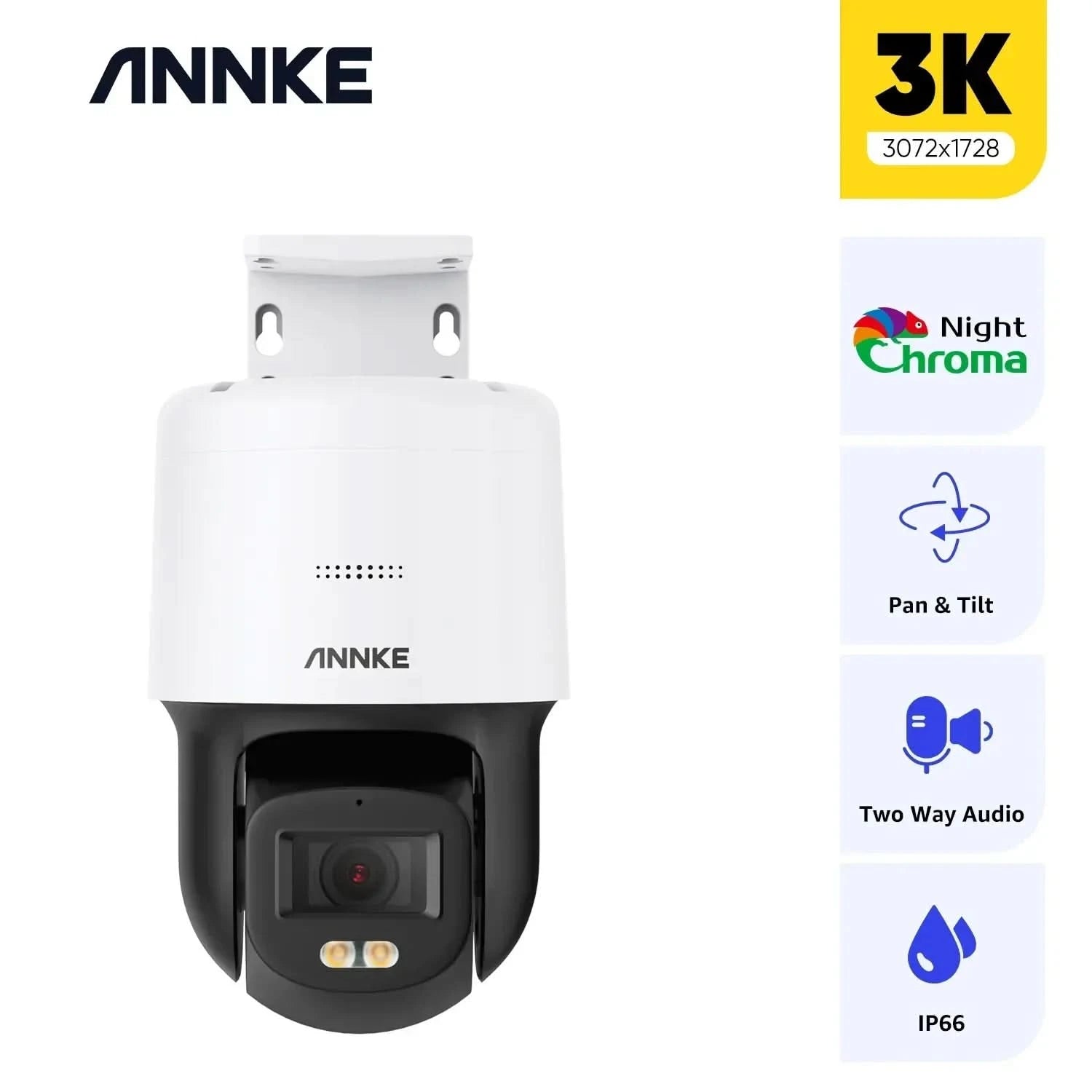

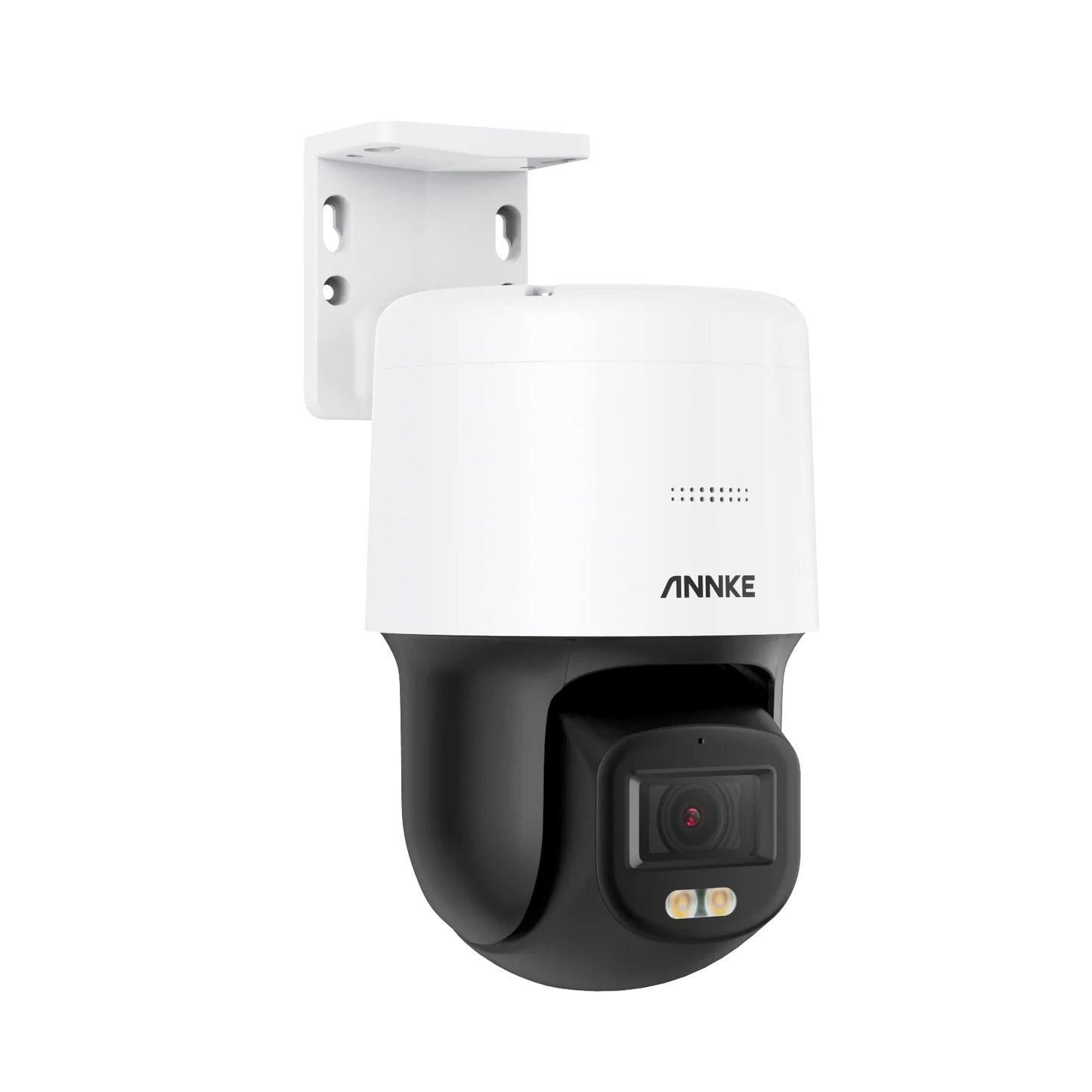

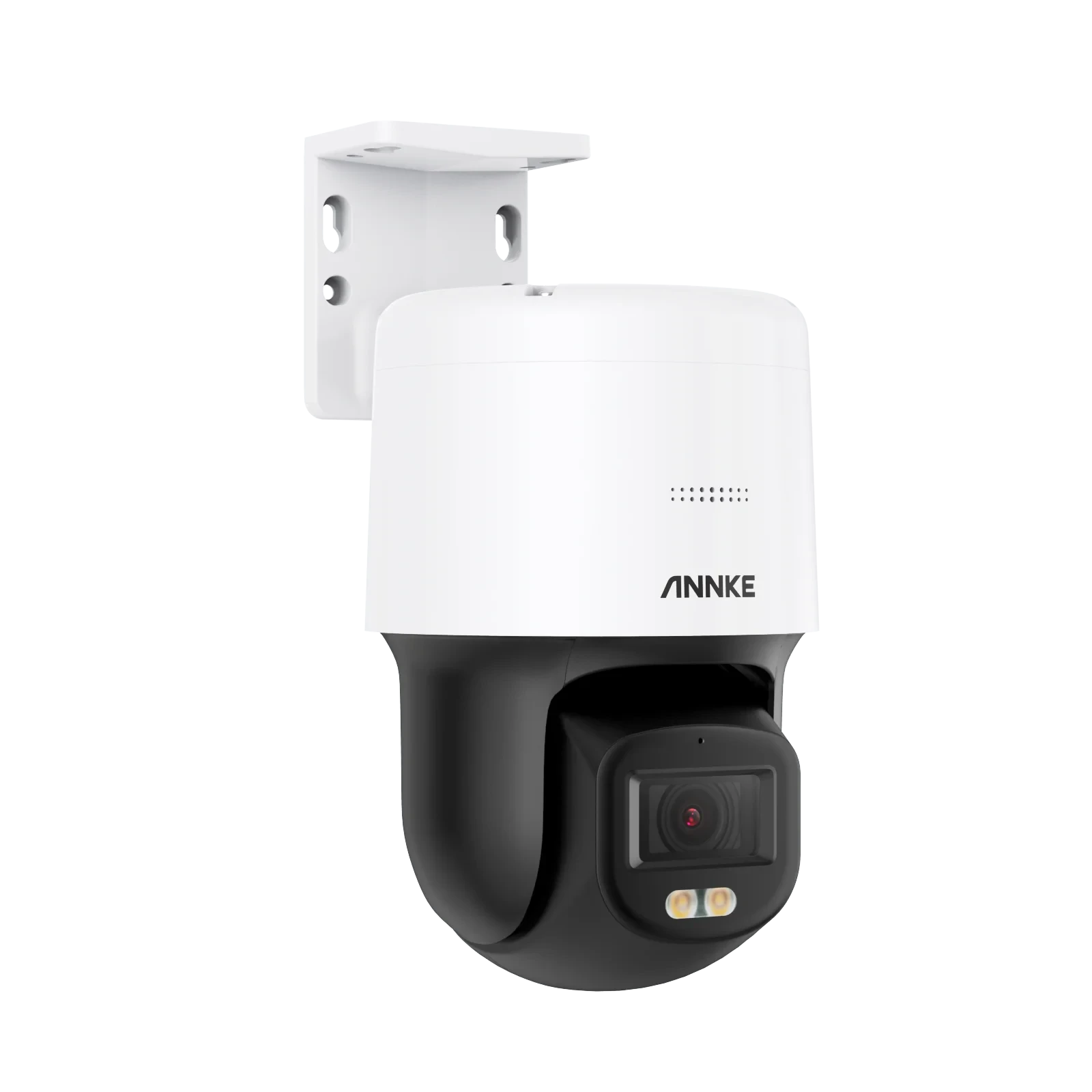

Annke 6MP POE Full Color Camera Outdoor POE Two Way Audio Security Camera Protection 2.8 MM Lens Video Surveillance For NVR Kit
Annke 6MP POE Full Color Camera Outdoor POE Two Way Audio Security Camera Protection 2.8 MM Lens Video Surveillance For NVR Kit
Couldn't load pickup availability
SPECIFICATIONS
APP: Annke
Alarm Type: Local Alarm
Audio Sampling Rate: 8 kHz/16 kHz
Brand Name: ANNKE
Certification: FCC
Color: WHITE
Connectivity: IP/Network Wireless
Dimensions (L x W x D)(mm): 75mm*75mm*110mm
High Definition: 6.0 Megapixels
Hign-concerned Chemical: None
IP Rating: IP66
IR Distance(m): Up to 30m
Image sensor: 1/1.8 Progressive Scan CMOS
Installation: Normal
Lens: 2.8mm
Lens (mm): 2mm
Lens Quantity: Single Lens
Megapixels: 6mp
Minimum Illumination(Lux): 0.01
Model Number: I81EM
Origin: Mainland China
Power Consumption(W): 5W
Power Supply: Normal
Power Supply(V): 5V 1A
Protection Level: IP66
Sensor: CMOS
Sensor Brand: Sony
Smart home platform: Tuya
Special Features: Vandal-proof
Style: Box Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: No
TF Card: None
Video Bit Rate: 32 Kbps to 8 Mbps
Video Compression Format: H.264
Video Resolution: 3K(3072X1728)
Viewing Angle : 100°
Zoom: None
Zoom type: None
is_customized: Yes
Key features
• 1/1.8" Progressive Scan CMOS
• 3K full Color Network Speed Dome with 16:9 image scale
• Built-in microphone and speaker for real-time audio security

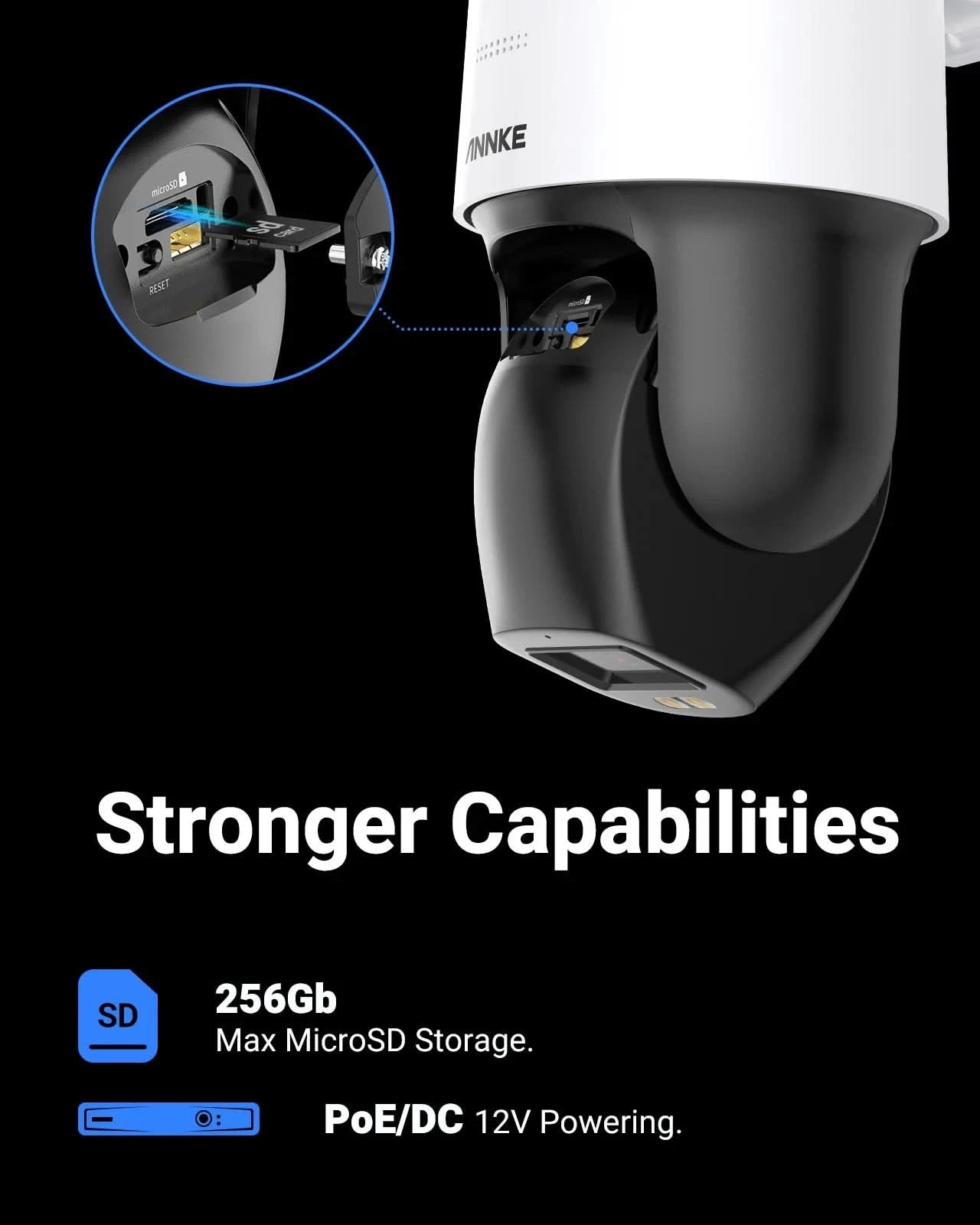

• Built-in memory card slot, support microSD card, up to 256 GB
• H.265+, H.265, H.264+, H.264
• DWDR, 3D DNR
• IP66

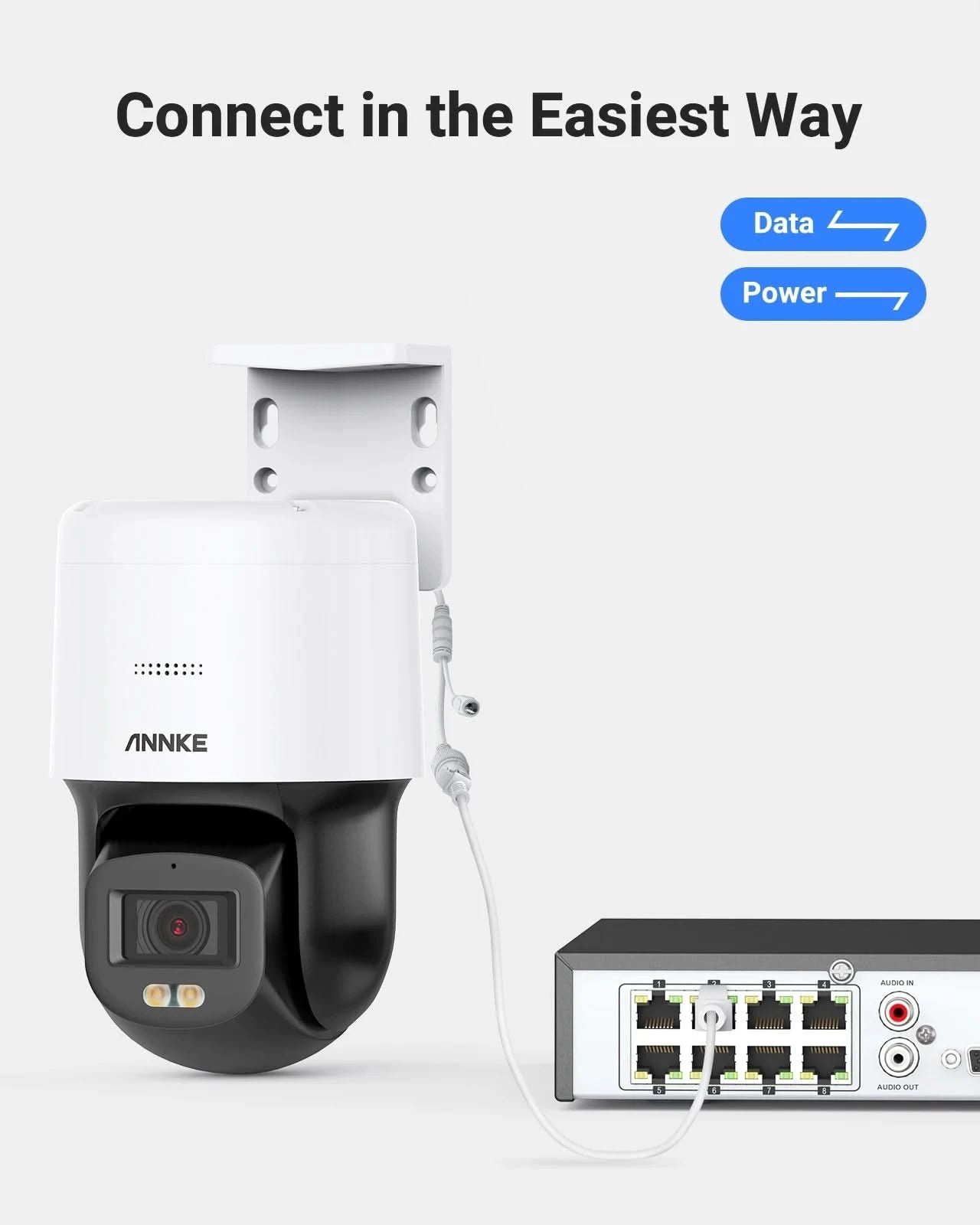

• 12 VDC and PoE (802.3af)

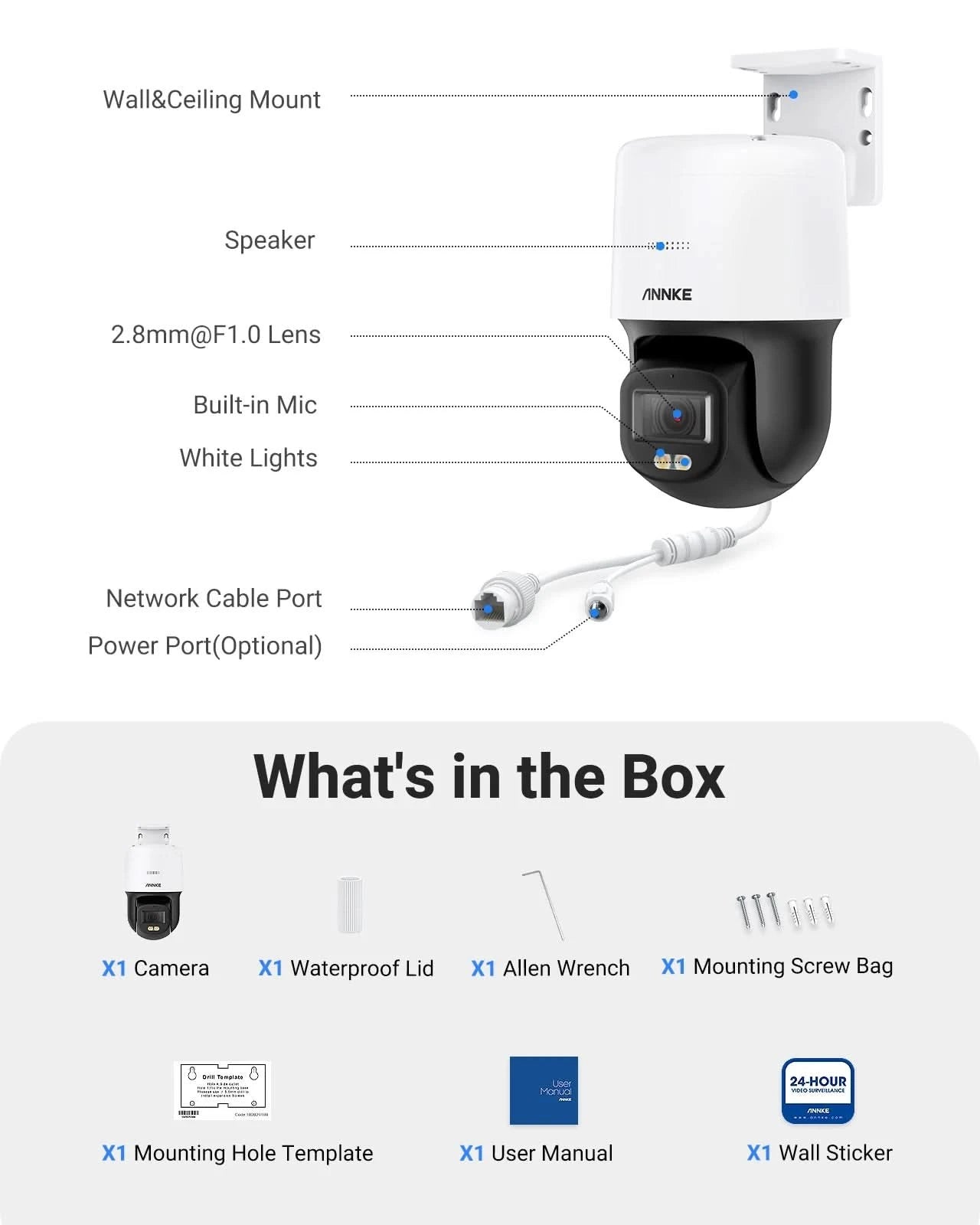

Packaging Contents
1 X Camera
1 X Surveillance Sign
1 X Allen wrench
1 X Mounting Hole Templat
1 X Mounting Screw Bag
1 X Waterproof Lid
1 X User Manual

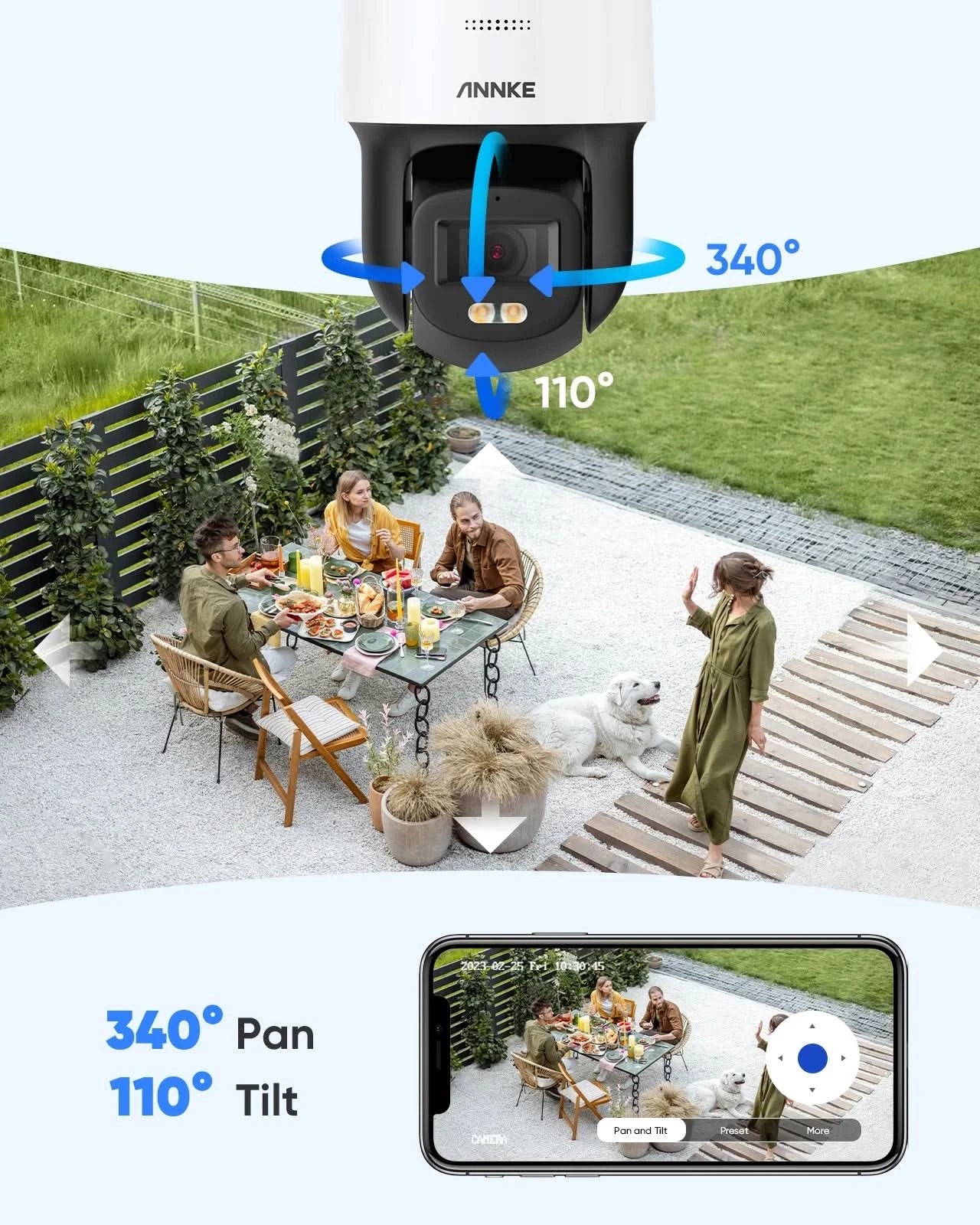

Every-Angle Covered PT
Coming with 0° to 340° panning & -5° to 105° tilting feature, this IP camera has a more extensive and clearer FOV. Via the APP downloaded on your phone, panning and tilting to the exact angle you need is easy on your fingertips.
Cutting-Edge Color Night Vision
The 2.8mm lens with F/1.0 super aperture and 1/1.8" ultra-size full-color dedicated progressive scan BSI COMS sensor collect more lighting to produce brighter images. Plus the soft supplement light turns on automatically in 0 lux illumination to ensure the best color night vision without glare.
16:9 Ratio Showcases 3K the Best
This IP camera delivers a 3072x1728@20fps 3K HD image, which also fits the monitor screen better compared to others with a 4:3 aspect ratio. And with the pioneering ISP tech, the video feeds flow onto the screen with better color and without distortion.
Real-Time 2-Way Audio
By including a high-sensitivity pickup microphone, the device is able to effectively eliminate environmental noise and capture clear listen-in audio. The internal speaker also allows for easy communication.
IP Camera | ||
Camera |
Image Sensor |
1/1.8"Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
Lens |
2.8 mm@F1.0 |
|
FOV |
Horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9° |
|
Supplement Light |
Smart white Light, up to 30 m |
|
Min. Illumination |
24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light |
|
Movement Range |
Pan:0° to 340°, Tilt: -5° to 105° |
|
Pan Speed |
Configurable from 4° to 21°/s |
|
Tilt Speed |
Configurable from 4° to 19°/s |
|
Audio Compression |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC) |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Environment Noise Filtering |
Yes |
|
Image Enhancement |
3D DNR,BLC, HLC, WDDR |
|
Protocols |
IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP |
|
API |
Open Network Video Interface Version 18.12 |
|
Audio |
Build in microphone & speaker, support 2-way audio |
|
Basic Event |
Motion detection, video tampering alarm, exception |
|
General Function |
Mirror, password protection, watermark |
|
General |
Material |
Plastic |
Color |
White & black |
|
Operating Power |
12 VDC ± 25%, 0.75 A, max. 9 W; PoE (802.3af), max. 10 W |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Support MicroSD Card (up to 256 GB) |
|
Operating Temperature |
-22° to 122° F (-30° to 50° C) |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Protection Level |
IP66 |
|
Dimension |
162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") |
|
Weight |
780 g (1.7 lb.) |
|
